Top Work CM-2 Monoset Copy TOOL & CUTTER GRINDER, RADIU

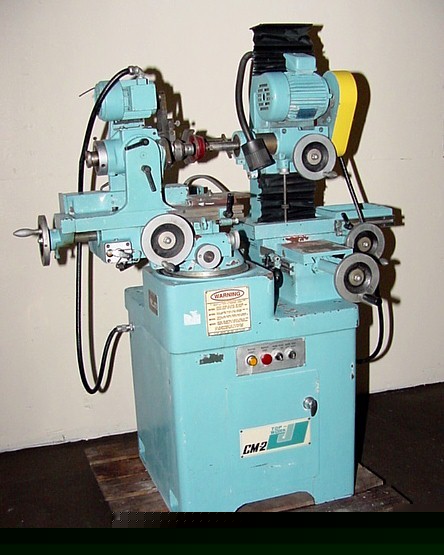

Top Work CM-2 Monoset Copy TOOL & CUTTER GRINDER, RADIUS GRINDER (MONOSET COPY)
MODEL: CM-2, S/N: 1214, MFG. 1998
SWING OVER MAIN SLIDE,MAX. DIA.:............... 12"
COLLET WORK DIA, MAX.:......................... 1.25"
COLLET WORK DIA, MIN.:......................... 0.12"
LEAD GENERATED BY SPIRAL LEAD MECHANISM, MIN.:. 1.81"
LEAD BETWEEN SPINDLE NOSE & TAIL CENTER,MAX.:.. 6"
GRINDING WHEEL DIA., MAX.:..................... 4"
MAIN SLIDE TRAVEL:.............................. 5.75"
OFFSET SLIDE TRAVEL, TOTAL:..................... 5.25"
- FRONT OF CENTER:............................. 3"
- REAR OF CENTER:.............................. 2.25"
HORIZONTAL PLANT (RURMATABLE BASE):.............. 235 DEGREES
VERTICAL PLANE, ABOVE CENTER:.................... 40 DEGREES
VERTICAL PLANE, BELOW CENTER:.................... 40 DEGREES
LONGITUDINAL SLIDE TRAVEL:....................... 6"
VERTICAL SLIDE TRAVEL, TOTAL:.................... 9.50"
- ABOVE CENTER:................................. 4.50"
- BELOW CENTER:................................. 5"
CROSS SLIDE TRAVEL, TOTAL:....................... 7.50"
- FRONT OF CENTER:.............................. 3"
- REAR OF CENTER:............................... 4.50"
WORKHEAD, ONE SPEED:............................. 436 RPM
WHEELHEAD, THREE SPEEDS:......................... 4000, 5729, 8000 RPM
WORKHEAD DRIVE, AC:............................... 1/4 HP
WHEELHEAD, DRIVE, AC:............................. 1/2 HP
AREA OF BASE ONLY:................................ 25" X 26"
AREA REQUIRED FOR MACHINE:........................ 60" X 67"
HEIGHT FROM FLO0R TO CENTER OF WORKEAD SPINDLE:... 47.72"
HEIGHT FROM , OVERALL WITH WHEEL HEAD RAISED:..... 62.12"
NET WEIGHT:....................................... 1,525 LBS
