> Transtector power/telco cabinet 120/240V 200 w/gen plug
Transtector power/telco cabinet 120/240V 200 w/gen plug
BRAND NEW!!! Way Below Wholesale!!!!!
(Link to 716K PDF) View the specs, diagrams and description here at the manufacturer's website:
http:// /%5Cdocs%5C1400-564.pdf
>>>>>> If you make a Best Offer and I accept it, then the Free NE delivery will NOT apply <<<<<<
NH - ALL, MA - ALL, VT-ALL, CT-East of I-91, RI-ALL and ME-Augusta & South
For Residential or Commercial use. Protect your home or business from power outages with this electrical panel with a built-in generator plug (Appleton). In the event of a power outage, just plug in the generator and you are good to go.
24-Position Square-D QO Load Center

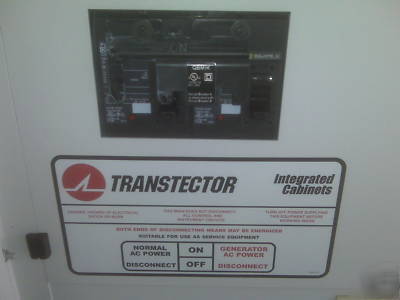

TRANSTECTOR 1101-781-200 POWER TELCO CABINET (PTC)

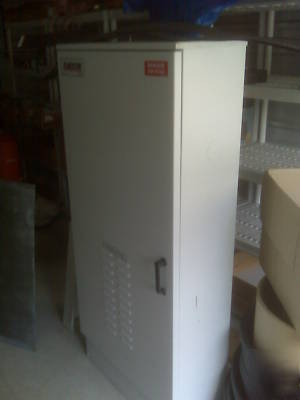

Dimensions: 64"H X 30"W X 12"0
The Transtector Power Telco Cabinet (PTC), Figure 1, provides interlocked main breakers
for incoming power transfer between utility and generator sources, a distribution panel, along

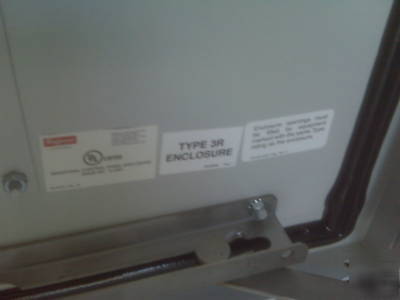

protection is provided in both the AC and the Telco chamber. The NEMA 3R enclosure is constructed
of heavy gauge 5052-H32 aluminum with a powder coat paint finish. Dimensions of the
cabinet are shown in Figure 2 of the PDF. The weight of the unit is approximately 150 Ibs (68 Kg).
The cabinet incorporates both AC Power and Telco chambers. The AC Power chamber is
equipped with two interlocked 200 amp main breakers and a 24 position load center for site
is designed to meet all requirements as stated in Underwriter Laboratories UL891
specification. In addition, the components are designed to meet the National Electric Code.
1.4. Power Transfer Switch Cabinet:

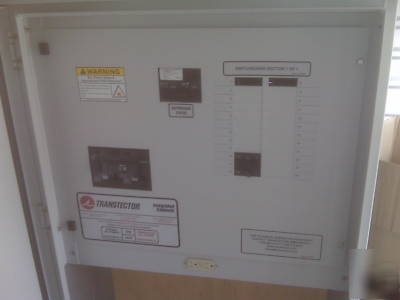

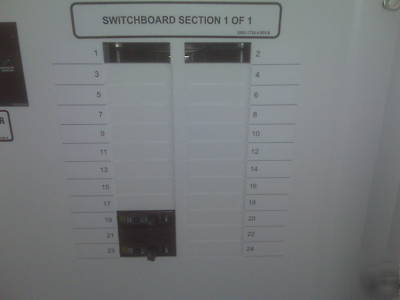

The PTC has a load center that distributes electrical power and has twenty-four breaker
positions. The power side also includes a 125V Ground Fault Circuit Interrupter (GFI)
convenience outlet, which permits service personnel to plug into the cabinet when AC power
is required for field service and maintenance. The AC compartment also includes a
generator receptacle and surge protection.
The specific features of the Power Transfer Switch include:
0 frame main breakers w/face mount mechanical interlock

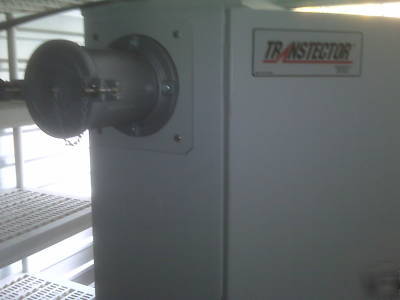

Appleton AR20044RS or AR20033RS generator inlet (Optional)
(See Fig. 3, 4, and 5 for wiring orientation)

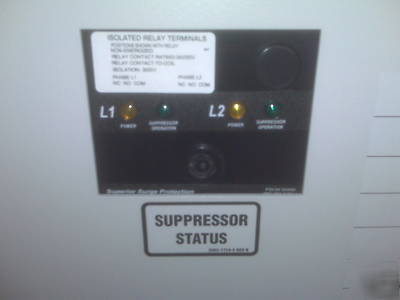

Transtector AC surge suppressor (uses 2 load center positions)
15A 125V GFI convenience outlet (uses 1 load center position)
15A single pole breaker to GFI
20A double pole breaker to TVSS
10A single pole breaker to Telco cabinet fan (optional)

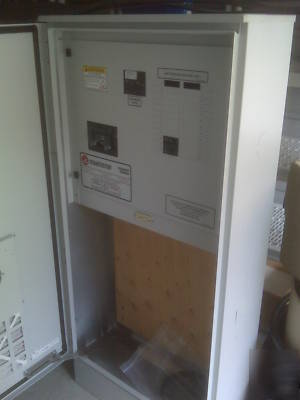

Telco area contains a plywood backboard, which allows a variety of equipment to be
The specific features of the Telco cabinet include:
Thermostatically-controlled fan (gO F)
12-position ground bar (optional)
12-position terminal strip. (optional)
T-1 line surge suppressor (optional)
1.6. Doors and Locking Mechanism:
The PTC is equipped with a 3 point latching system and a pad lockable handle. The cabinet
0 wind stop to secure the door in an open position.
