80" mattison "heavy duty" rotary surface grinder

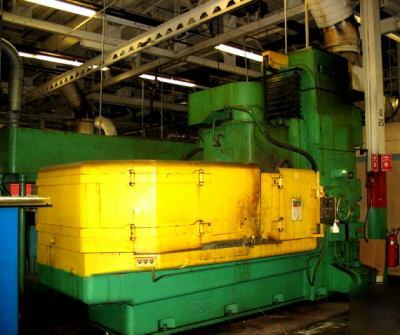

80" MATTISON "HEAVY DUTY" ROTARY SURFACE GRINDER , MODEL: 36-60,
CHUCK DIAMETER...................... 60"
MAXIMUM SWING....................... 80"
HEIGHT UNDER NEW WHEEL.............. 30"
TABLE SPEEDS........................ 1.6, 5.5, 10, 17 RPM
AUTOMATIC DOWNFEED, VARIABLE........ .005 TO .165
DIAMETER OF CORTLAND CHUCK.......... 36"

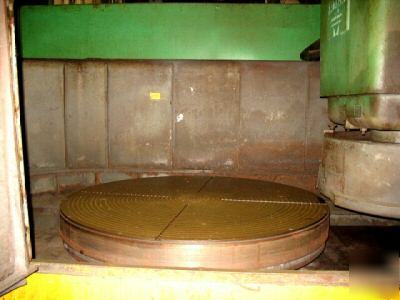

60" ELECTRO-MAGNETIC CHUCK (9/16" TO 5/8" CHUCK LIFE)
PENDANT CONTROL FOR MACHINE'S OPERATION
"TRABON" AUTOMATIC LUBRICATION SYSTEM
TWO-TIER, WATERFALL COOLANT SYSTEM
CATWALK AROUND BACK OF MACHINE
100 H.P., 220-440 VOLT, 3 PHASE 60 CYCLE SPINDLE MOTOR
DIMENSIONS ........................ 196"L X 134"W X 174"H
APPROX. WEIGHT .................... 65,000 LBS
