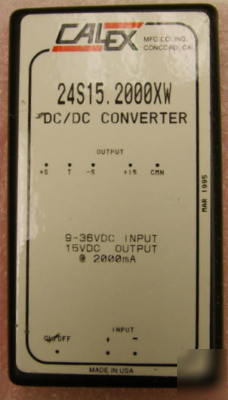

Calex 24S15 dc/dc converter 9-36 in/15 out @ 2 amps
24S15 DC/DC Power Supply Converters
Package dimensions are: 2.60" x 4.60" x 0.83" (inches)
Data information on this line of power units can be found at Calex online at
http:// /pdf/2530wsxw.pdf
These single output DC/DC converters are designed for wide
input range low noise telecommunications, industrial control
and instrument applications. The ultra wide input range (4:1)
is ideal for battery or solar based applications.
The converters are state-of-the-art 75kHz MOSFET based
designs that provide outstanding efficiencies up to 84 percent
control method that provides linear regulator type performance
with a true, high efficiency switching DC/DC topology. The
large amount of loop gain insures excellent input ripple
rejection and line transient response.
Outstanding line and load regulation are achieved over the
full input voltage range and over the specified load current
Also included is a logic (open collector TTL / CMOS
compatible) shutdown pin to control converter operation.
The XW Single Series is protected from output shorts to
common by a high speed pulse by pulse digital current limit
circuit and a resettable thermal shut down circuit.
The output and the power switch are overvoltage protected.
Low Noise, Highly Regulated Output
Efficiencies to 84% at Full Load
No Derating to 80 C Case Temperature
Six-Sided Continuous Shielded, Low Thermal
500 VDC Minimum Input To Output Isolation
Overvoltage Protection for Input and Outputs
* Direct Output Paralleling for Added Power
