English wheel 2X9 inch wide upper yoke quick release
English Wheel Upper 2x9 Yoke with Quick Release

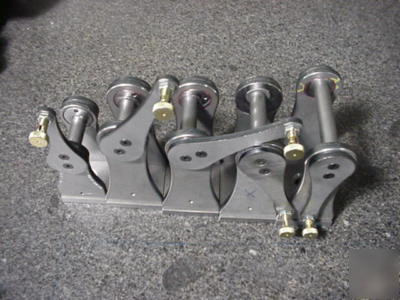

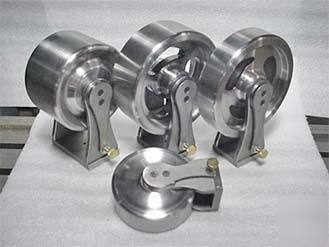

Picture Shows All 4 Styles We Make.
* Holds Wheels up to 9 Inches in Diameter
* Holds Wheels up to 2 Inches wide
* Spring Loaded Locking Release Pin
* Rotate the Handle and Your Wheel Raises off the Panel 1/2"
* Preassembled and Ready to go
* You will need to Grease the Cams lightly when Installing Your Wheel.
To Load Your Wheel ont this Yoke simply remove the Axle 1/4-20 Screw from the opposite side of the handle. There is no need to remove both Screws on that side, the second screw secures the Cam. Next Place Your Wheel inside the Yoke and push the Axle(still attached to the Handle) through the Wheels Bearings. Next you need to orient the Cam to the Flat on the Axle and slide the Cam over the Axle. Last Secure the 1/4-20 Screw back to lock the Cam to the Axle.
This is the Most Precise Upper Yoke on the Market, it's Also the Only Quick Release Upper other than the UK Guy that bought and Copied my Design.
