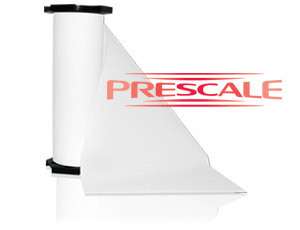

Fuji prescale - pressure indicating film (lw)
Fuji Prescale Film reveals pressure distribution and magnitude between any two contacting or impacting surfaces. Fuji Prescale is a thin sensor film that instantaneously and permanently captures a pressure profile "snapshot" by virtue of its "changing color." Conceptually similar to Litmus paper, the color Fuji Prescale Film turns is directly proportional to the amount of force applied. Fuji Prescale - pressure indicating sensor film is extremely thin (4 to 8 mils) which enables it to conform to curved surfaces. It is ideal for invasive intolerant environments and tight spaces not accessible to conventional electronic transducers.
Fuji Prescale is a mylar based film that contains a layer of tiny microcapsules. The application of force upon the film causes the microcapsules to rupture, producing an instantaneous and permanent high resolution "topographical" image of pressure variation across the contact area. Simply place Fuji Prescale between any two surfaces that touch, mate or impact. Apply pressure, remove it and immediately the film reveals the pressure distribution profile that occurred between the two surfaces. The color intensity of the film is directly related to the amount of pressure applied to it. The greater the pressure, the more intense the color.
Fuji Prescale has a wide array of uses. For example, it can be used in a bolted joint interface, composite layup, heat sealing and lamination or press. Our pressure indicating film acts as a force sensing resistor. It can measure surface pressure distribution whether it is used as an impact force sensor, seat pressure sensor, as a strain gauge or even as nip impression paper.
This product, Fuji Prescale Low (LW) has a range of 350 - 1,400 PSI (25 - 100 kg/cm ).
For more types of Fuji Prescale Film : http:// /SensorCart/index.php?option=com_content&task=view&id=13
Sensor Products is the authorized dealer of Fuji Prescale Film in the U.S.A. Fuji Prescale and all Fuji Paper products are synonymous with our Pressurex pressure indicating film.
Available for the Following Applications:
