Fujikura fsm-16S fiber fusion splicer fsm 16S cleaver

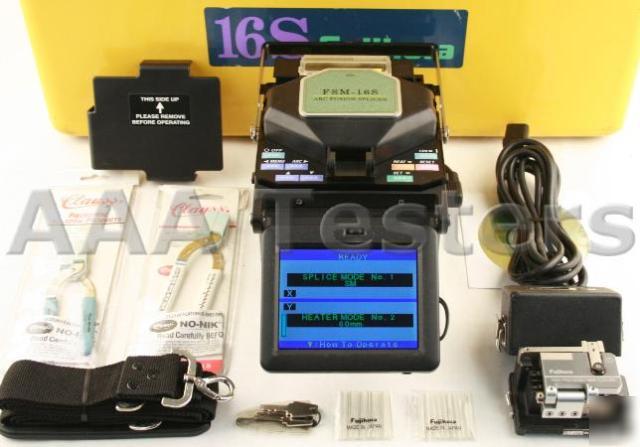

* Fujikura FSM-16S Fusion Splicer
* Fujikura CT-04 High Precision Fiber Cleaver With Manual
* Clauss No-Nik 305 m fiber Optic Stripper
* Clauss No-Nik 254 m fiber Optic Stripper
* Fujikura ADC-07 AC Adapter/Battery Charger
Fujikura / AFL FSM-16S SM & MM Fiber Fusion Splicer with built-in Heat Shrink Oven
This Unit Has A Total Arc Count Of Only 1738!
Fujikura CT-04 High Precision Fiber Cleaver, Hard Carrying Case & Full Accessories Included!
The technology embodied in the FSM-16S provides unprecedented utility in harsh outdoor splicing environments. Altitude/pressure compensation is provided to ensure proper arc conditions in extreme environments. In addition, the wind protector ensures a stable arc in cross winds in excess of 30 mph. The 5 color anti-refl ective LCD monitor provides excellent visibility during splicing operations. With the small size, light weight and additional docking-bay for power modules, the FSM-16S is reliable for use in a variety of field scenarios.
* Fully automatic with loss estimation
* Simultaneous X-Y view with 110X magnifi cation
* Extremely small and light weight to ensure fi eld portability
* Ergonomic design for taut-sheath splicing
0.05dB for SM, 0.02dB for MM, 0.08dB for DS (typical)
Fusion Splices Per Battery Charge
-40 (Including use of the tube heater for splice protection sleeves)
40mm and 60mm sleeves, as well as micro sleeves (10 programmable tube heater modes)
Fully automatic up to 3500 meters (11,500 feet)
5 LCD color monitor with 110X fiber magnification, external RCA jack for NTSC video
Modular bay accepts slide-in 12V 4.5 amp-hour battery pack or slide in AC adapter, AC adapter accepts 100 to 240 VAC (50/60 Hz). Optional slide-in adapter for 12V 2.0 amp-hour camcorder battery.
150mm x 150mm x 150mm (5.9 x5.9 x 5.9 )
2.7kg (5.9 lbs) with AC adapter installed; 3.0kg (6.6 lbs) with battery installed
