Mach ajax cnc control w 3-axis servo drive & plc, MACH3
Ajax CNC introduces our new Mach 3 based, Plug and Play CNC control.
Just one cable connects your PC to a complete, closed-loop, servo based CNC control. No more missed steps, never lose position again.
Save time and money and do it yourself with a kit specifically designed for you to connect your own PC with Mach3 CNC software via a standard Ethernet cable, for full CNC capability.
See it in action on YouTube!: Click here to watch a short video

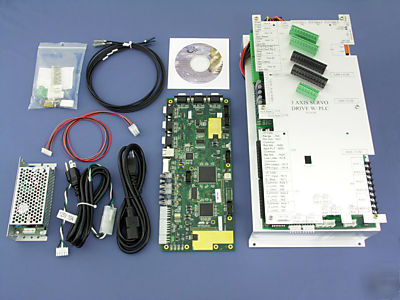

Mach3 CNC Kit With 3-Axis DC Servo Drive & PLC
Click any image below for a larger view
This kit includes the major components you need for a fully capable DC CNC system, perfect for the do-it-yourselfer who wants to save money and still have all the features of a more expensive off-the-shelf system. AjaxCNC has bundled together a fast, reliable DSP-based CNC CPU card (our "MPU11"), with a 15 amp 3-axis servo drive and PLC combo (our "DC3IO"), into a dead simple plug-and-play system optimized for use with Mach3 software. Not only that, we've taken all the work out of configuring your system: coolant, lube, spindle control, limits, and more have dedicated connections and are pre-programmed and ready to run. Click here to see a detailed view of these connections.
Need more options or expanded PLC I/O? Want to add a 4th axis, digitizing probe, tool length setter, MPG handwheel, or operators control panel? No problem! Our kits are expandable, upgradeable, and have the flexibility to meet nearly any application.
Click the image at left to see a more detailed diagram and overview of how our kit components work together in a complete CNC system.
* Fast Ethernet based communication with any capable PC
running Mach 3 CNC software
* MPG, probe, and jog panel/pendant connections
* Multi-axis homing and jogging
DC3IO 3 Axis DC Servo Drive & PLC
DC3IO 3-Axis Servo Drive & PLC
* 3-Axis 15amp closed loop DC servo drives
* PLC 30 In / 31 Out onboard (expandable to 240 I/O)
- Programmable Spindle Speed
* Limit switches can be wired directly with no further software configuration needed
* Auto homing to limit switches or encoder index pulse
This kit includes power supplies and connectors for the above components and 5' fiber optic cables for communication. Ready-to-run servo motors with encoders are sold separately on our CNC Components page. Mach3 software is available directly from Artsoft & Newfangled Solutions LLC, and is not included in pricing below.
Mach3 CNC Kit With 3-Axis DC Servo Drive & PLC: $1195.00
Connect your own PC with Mach 3 CNC software to this AjaxCNC system for full CNC capability.
