Pepperl fuchs inductive namur proximity sensor 106444

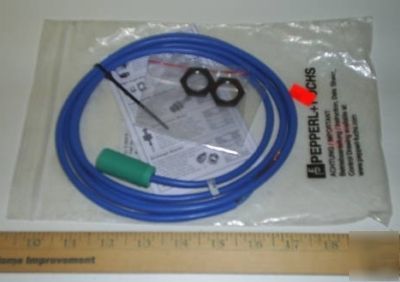

This is a brand new unused Pepperl Fuchs 18mm diameter Cylindrical NAMUR Inductive Proximity Sensor, 5mm sensing range, flush mountable, NAMUR output, plastic (crastin) housing, 2 meter cable (PVC / #18AWG), intrinsically safe when connected to an approved I.S. barrier. Part # 106444 , NJ 5-18GK-N .
Technical Specifications: Nominal Voltage 8VDC ; Supply Voltage 5-25VDC ; Load Current - target detected <1 mA ; Load Current - target not detected >3 mA ; Output - NAMUR ; Hysteresis 1-10% (3% typical) ; Short Circuit and Overload Protection - YES ; Reverse Polarity Protected - YES ; Sensing Face Material - PBT ; Switching Frequency 500 Hz ; Standards EN 60947-5-2 ; Standard Conformity DIN EN 60947-5-6 ; Ambient Temperature -13F to +212F (-25C to +100C) .
