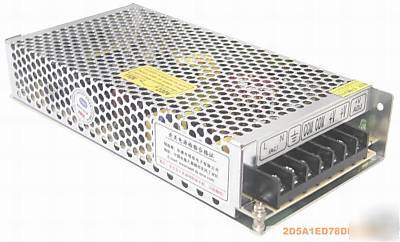

Switching power supply 145W single s-145-12 12A 12V
* AC input range selectable by switch
* Fixed switching frequency at 25KHz
* Made in China for low cost
* AC input voltage range: 88~132VAC / 176~264VAC selectable by switch
* AC inrush current: Cold start, 35A at 230VAC
* DC adjustment range: 10% rated output voltage
* Overload protection: 125%~165% shut off, AC recycle to re-start
* Over voltage protection: 112%~135% rated output voltage
* Setup, rise, hold up time: 100ms, 50ms, 20ms at full load and 230VAC
* Withstand voltage: I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, 1 minute
* Working temperature: -10~60oC (refer to output derating curve)
* Safety standards: Design refer to UL1012
* EMC standards: Design refer to EN55022, IEC801-2,3,4
* Connection: 7P/ 9.5mm pitch terminal block
