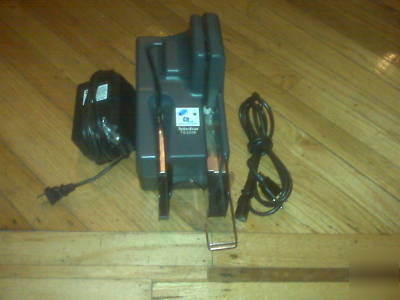

Tellerscan ts-220E TS220E check reader mint
ellerscan 220E, tellerscan 220Ei
* Highest Definition Image Drives IQA & Usability
* 40 dpm Scan Speed with up to 40 Item Self Adjusting Autofeeder
* Advanced Best Read MICR for Maximum Accuracy
* Smallest Footprint to Fit Corporate Office or Teller Window
* Easy to Integrate - Common API and Remote Support
* Reliable Quiet Single Pass Transport
The TS220E is a small duplex scanner with a self adjusting autofeeder that reads the MICR codeline, offers a high yield programmable rear ink endorsement before imaging, and scans the front and back of the check on a single pass.
High quality images mean improved OCR / ICR recognition of machine print, handwritten characters, signatures and other optically acquired images on the document. The TS220E connects to your PC using an industry standard USB 1.1 or 2.0 port for no additional cost.
* 25 to 40 item Self Adjusting Autofeeder (Depending upon document thickness and condition)
* Smoother and Quieter Operation
* Single slot exit pocket holds up to 50 items
* Document Height: 54-106 mm. (2.12" - 4.17")
* Document Length: 80-228 mm. (3.91" - 8.97")
* Document Weight: 16-32 lb. (60-120 grams / sq. meter)
* Scanning Method: Double-camera CIS modules, Tri-color LED
* Transport Speed: 50 cm / sec (33 cm / sec scanning color)
* Performance: Up to 40 x 6" items per minute
* Image Format: B/W, 16 or 256 gray levels
* Image Resolution: 200 dpi hardware
* Hardware is capable of color images, using API's JPG compression
* MICR Recognition: MICR recognition for E13B or CMC7 standards
* PC Interfacing via USB port (2.0 or 1.1)
* Options: Ink-jet printer (Standard HP C6602A cartridge, high yield)
* Diagnostics tools for full testing of scanner functionality
* Flash EEPROM allows for easy upgrade of functionality
* Easy access to the document path, including the optics
* 32 bit API Toolkit (Requires 32 bit application)
* Windows 2000 and Windows XP
* 115 VAC (+/- 10%), 60 hz - domestic
* 230 VAC (+/- 10%), 50 hz - international
* Separate standard power supply
* Temperature (operating): 60 - 90 F (15 - 32 C)
* Humidity (operating): 35-85% non-condensing
* Length: 8.6" (21.7cm) (11" - 27.9cm incl. I/O trays)
https://corvina.msrootserve.com/abc-i.com/InfoPages/secure_order_1234.htm
*Requires PC w/USB port and Microfilm Replacement Software not included in price of machine
