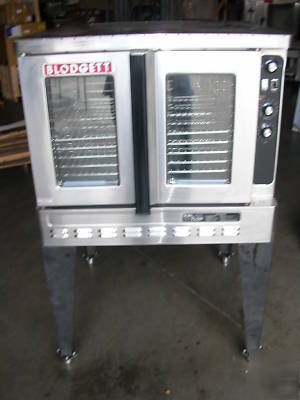

Blodgett full-size dual flow gas convetion oven dfg-100
Blodgett Full-Size Dual Flow Gas Convetion Oven DFG100
This item was used very lightly before it was pulled to upgrade to a larger sized oven.

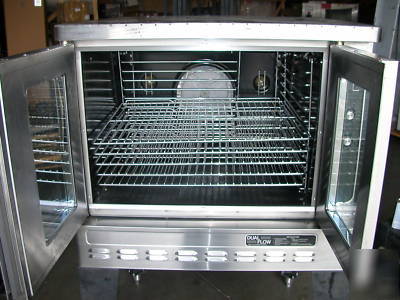

Standard depth baking compartment - accepts five 18" x 26" standard full- size baking pans in left-to-right positions.
Refer to operator manual specification chart for listed model names.
Stainless steel front, top, and sides
Dual pane thermal glass windows encased in stainless steel door frames
Porcelain door handle with simultaneous door operation
Triple-mounted pressure lock door design with turnbuckle assembly
Modular slide out front control panel for easy cleaning
Solid mineral fiber insulation at top, back, sides and bottom
Double-sided porcelainized baking compartment liner (14 gauge)
Five chrome-plated racks, eleven rack positions with a minimum of 1-5/8" (41mm) spacing
Dual Flow Gas system combines direct and indirect heat
Electronic spark ignition control system
Manual gas service cut-off switch located on the front of the control panel
Air mixers with adjustable air shutters
Solid state thermostat with temperature control range of 200 F (93 C)
Two speed fan motor (single speed in CE model)

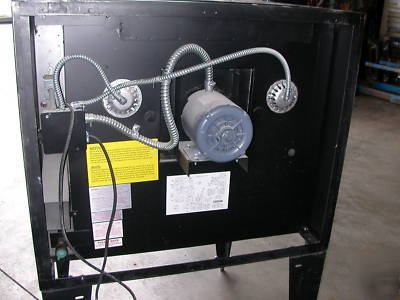

1/3 horsepower blower motor with automatic thermal overload protection
Two 50 watt commercial bake oven lamps

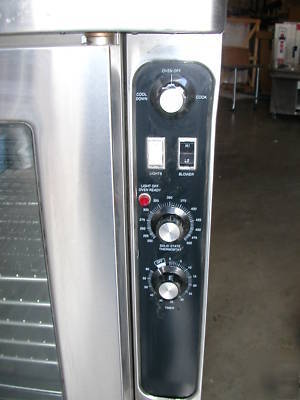

Solid state manual control with separate dials to control thermostat and timer
25" (635mm) adjustable stainless steel legs (for single units)
6" (152mm) adjustable stainless steel legs (for double sections)
