Cure oven elevated dual entry and day off oven

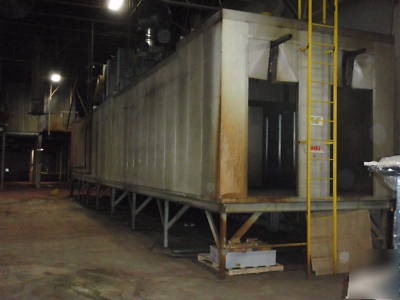

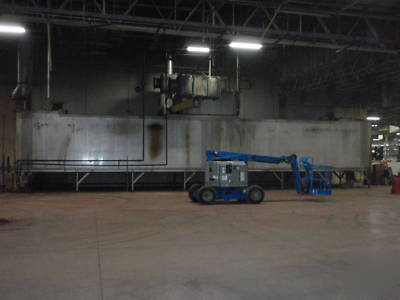

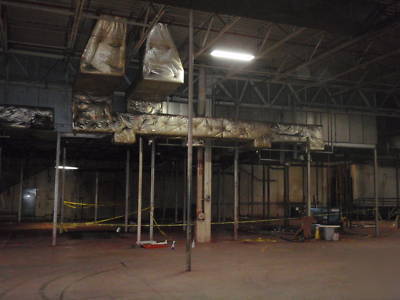

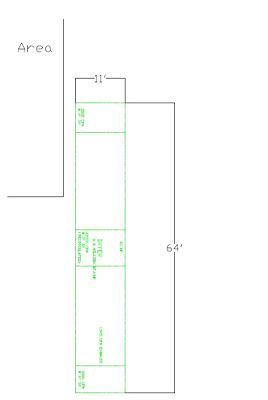

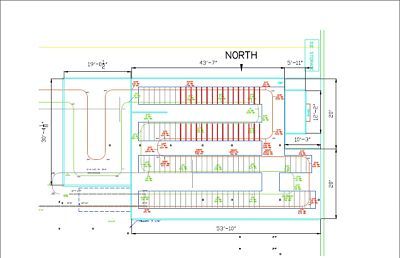

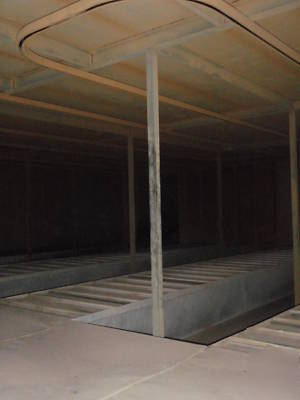

Elevated Cure oven dual entry with dual entry dry off oven, pictures could not capture the cure oven because of the ceiling. The cure oven is 3.5 mil BTU , Line speed is 12-1/2 FPM opening is 7 ft wide x app 10ft comes with 3 inch inclosed mono rail system for inside each oven. 10'-3" inside ceiling height. 4 pass each line brings it to 8 passes in one oven, could run two shifts at once by running two powder booths at one time. All structural steel included, also cool down chamber floor and ceiling and intake and exhaust fans included with mono rail system. The dry off is 64' long with dual entry dual exit openings are qty 4 openings at 36" w x 72" high. 2.5 mil btu, drawings show most needed dims.for more details call Syntec Systems at (***)-675-6091 or Craig at (***)-206-0212 more pictures are available, system is disassembled in storage and ready to load. All cure oven panels are pelleted and loaded in semi trailers, we will load all other equipment on your truck lines. You pay to return our qty 4 semi trailers presently holding all oven panels.
