Eagle signal B856-511 multi-function timer

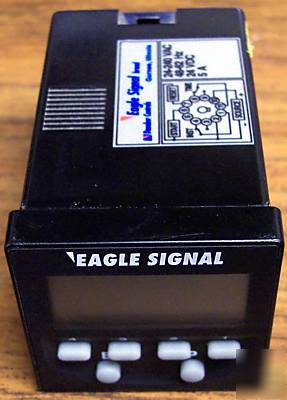

Used, Eagle Signal B856-511, Multi-Function Timer. Unit comes with base not pictured.
An excellent value in its class, the B856 features a compact 1/16 DIN package, precise digital setting, versatile functionality, and a straightforward button-per-digit interface.
It can be easily programmed to perform any standard timing operation: On Delay Timer, Off Delay Timer, Interval, or Repeat Cycle. A unique On Delay / Interval Mode can, in many cases, perform the function of two separate timers. Output is via DPDT relay contacts.
Five selectable time ranges and a programmable decimal point provide preset times ranging from 0.1 seconds to 999 hours.
A standard model features a timed DPDT contact output while another model includes separate timed and instantaneous SPDT contacts. All are rated for 5 Amp loads.
Simplicity of operation is maintained while still providing a high level of functionality. All programming is done through the front panel, with an intuitive button-per-digit keypad that makes entry of preset times quick and easy. A crisp dual line LCD display lets the operator readily view elapsed or remaining cycle time as well as the preset value. Prominent annunciators indicate information such as the time range and the status of the input and outputs.
Reliability is a key feature of the B856. IEC level 4 noise immunity ensures flawless operation in harsh electrical environments. Its IEC IP65 enclosure rating allows use in washdown conditions.
Wiring via an industry standard 11 or 8 pin socket and a power supply that can accept 24 - 240 VAC or 24 VDC vastly simplifies setup.
* Button-per-digit preset entry simplifies setup and operation
* High Contrast dual line LCD display indicates both Process Time and Preset Value
* Field selectable for operation in On Delay Timer, Off Delay Timer, Interval 1, Interval 2, or Repeat Cycle modes
* Universal Power Supply accepts 24 - 240 VAC or 24 VDC
* Designed to meet IEC 801 level 4 noise immunity standards for increased reliability
* Unique On-Delay / Interval mode lets one unit do the work of two in many applications
* Industry standard socket connection
* Programmable security levels prevent unauthorized setpoint or program changes
* UL, CUL recognized, CE compliant
* IEC IP65 rated front panel for use in washdown environments
Panel mounting in 45 x 45 cutout or DIN rail
Via 8 pin (B856-501) or 11 pin (B856-500 & -511) plug-in socket
24 - 240 VAC 50/60 Hz or 24 VDC
Field Selectable for Hours, Minutes, Seconds, Hours:Minutes, Minutes:Seconds
Field Selectable from XXXX to XX.XX for Hours, Minutes and Seconds
On-Delay, Off-Delay, Interval 1, Interval 2, Repeat, On-Delay / Interval
10 million cycles at min. load
UL and CUL recognized, CE marked
