New sealed allen bradley 1794-adn /b 1794ADN devicenet
Rockwell Automation > PLC & HMI > I/O Products > Flex & Flex Ex > 1794-ADN/B
Allen-Bradley 1794-ADN DeviceNet FLEX I/O 24V DC Media Adapter Module, 1794ADN, Series B
DeviceNet I/O Module Capacity: 8 modules; Communication Rate: 125/250/500 Kbps; Power Consumption: 7.9W @ 24V; Current draw: 450mA max; 330mA at 24V DC; Power Supply Nominal Input Voltage: 24V DC; Operating Voltage Range: 19.2-31.2V DC (includes 5% AC ripple); Indicators: Power - on/off, ModNet Status - red/green, I/O Status - red/green. he DeviceNet straight 5-pin open plug to 5-pin micro male connector can be used in place of the 5-position open style plugs for DeviceNet.
The 1794-ADN can interface with up to 8 terminal base units with installed Flex I/O modules. The adapter communicates to other network system components (typically one or more controllers or scanners, and/or programming terminals) over the DeviceNet network. The adapter communicates with its I/O modules over the backplane. The I/O map for a module is divided into read words & write words. Each I/O module will support at least 1 input word or 1 output word.

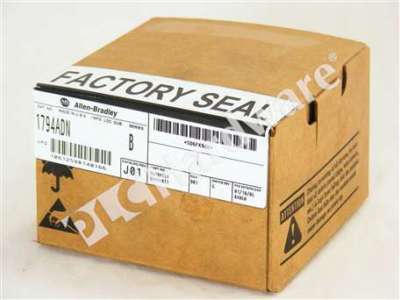

One New Factory Sealed Allen Bradley 1794-ADN Series B, DeviceNet FLEX I/O 24V DC Media Adapter Module.
The unit is Series B, Cat. Rev. J01, Rev. B01, S/W F/W Rev. G, Pkg Date 01/10/06.
