Omega egineering omegaline 600A 6-pen chart recorder

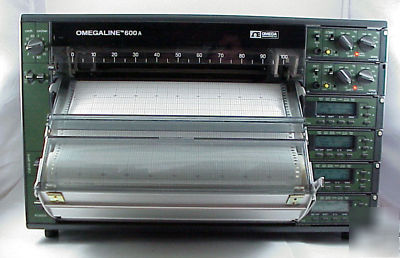

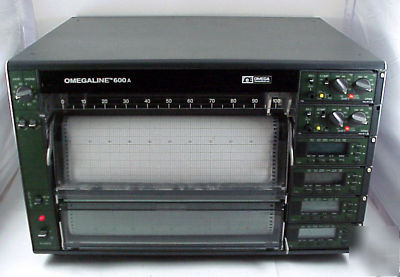

Omegaline 6-Channel Modular Vertical Chart Recorder

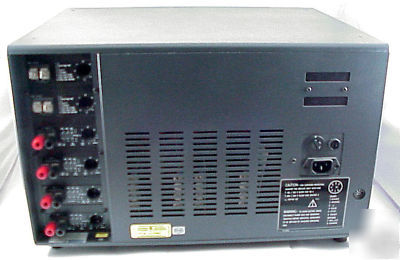

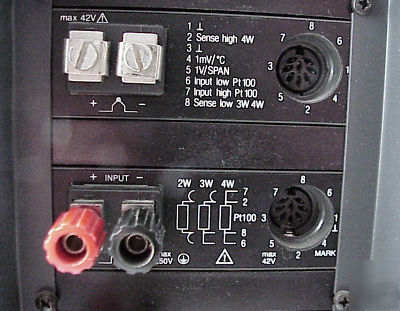

(2) each 600A-728 Temperature input modules
(showed pen movement when connected to a thermocouple)

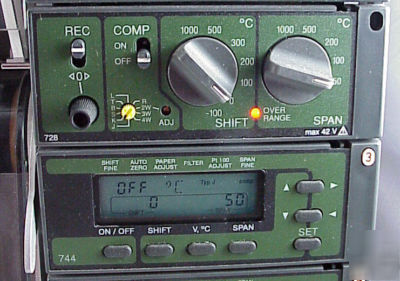

(4) each 600A-744 Programmable voltage or temperature input modules
(showed digital temperature display when connected to a thermocouple)
unit surplus from an electronics plant that has closed
recorder powers up and appears to be working properly
all input modules power up and respond similarly
pens respond to module power-on selections
no further operational testing could be done
no pens are currently installed
one rubber foot cap on base is missing
unit is in very good physical condition
(in sealed packs - age of pens unknown)
Measuring Inputs: Electrically isolated, see plug-in modules for detail types
Normal Position: Vertical; chart surface can be inclined to a 45 angle

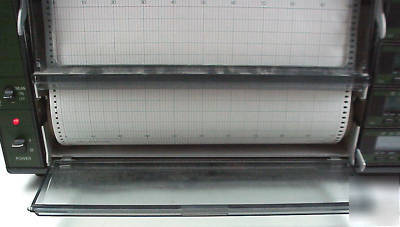

Scale: 0 to 100 linear, 20 divisions
Grid Imprint: Y division, 0 to 100, 100 steps; t division in cm/6 cm
Pen Types: Disposable felt pen, independent of channel. Pen offset per channel is approx. 2.5 mm (0.1"), electrically adjustable by means of pen sync
Dead Zone: 0.15% of the scale length
Linearity: 0.1% of the scale length
Attenuation: As per DIN 43782; overshoot, rounding 1% of the recording width
Recording Speed: Max. 100 cm/s (4"/sec)
Critical Frequency: 2 Hz according to DIN 43782
Paper Feed: Quartz operated, step width 0.078 mm Feed Accuracy: 30 ppm at 25 C (177 F), 70 ppm at 0 to 50 C (32 to 122 F)

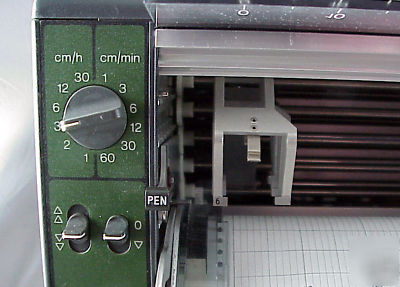

Feed Rates: 1/2/3/6/12/30 cm/h and 1/2/3/6/12/30/60 cm/min (1 cm = 0.3937")
Paper Positioning: Progressive motor control with switch for advance and reverse, max. feed 60 cm/min

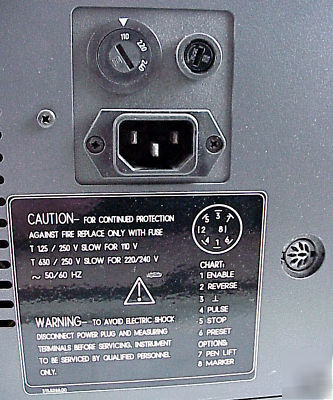

Remote Control Inputs: 8-pole standard plug, actuation: TTL, CMOS or with external no-voltage contact (active low)
PRESET SPEED: switch to one of the 12 internally pluggable feed rates
PULSE: feed control by means of external pulses
STOP: stop the paper feed by means of an external signal
ENABLE (for base unit): activation of the external feed control PULSE
REVERSE (for base unit): reversal of feed direction

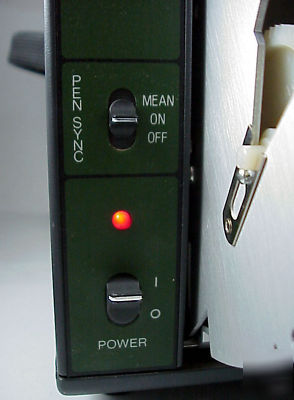

Pen Synchronization (-PS standard feature): 2.5 mm/channel, max. 6 channels and marking device or thermal printer
Resolution: Measuring signal 12 bit (approx. 0.06 mm), time axis 0.078 mm (2.8 cycles/cm) (1 cm = 10 mm = 0.3937")
OFF direct mode, measuring signal is digitized and supplied in analog form to the servo amplifier without storage
ON temporary storage of channels 2 to 6, with marking device or thermal printer 1-6
Min-max evaluation of the measuring signal between two paper cycles. Deviations 0.2% of the last value stored are recorded
MEAN temporary storage of channels 2 to 6, with marking device or thermal printer 1 to 6, calculation of the arithmetical mean of the last 8 measured values stored (digital filter)
Reference Temperature Range: 20 to 25 C (68 to 75 F)
Operating Temperature Range: 0 to 50 C (32 to 122 F)
Storage and Transport Temperature Range: -40 to 70 C (-40 to 158 F)
Power Supply: 110/220/240 Vac 10%, switchable, 50/60 Hz
Power Input: Basic device max. 90 VA, additional per channel approx. 8 VA, supplementary devices 3.5 VA max.
Dimensions: 266 H x 444 W x 342 mm D (10.5 x 17.5 x 13.5")
