Panasonic wv-CU550C system controller matrix system

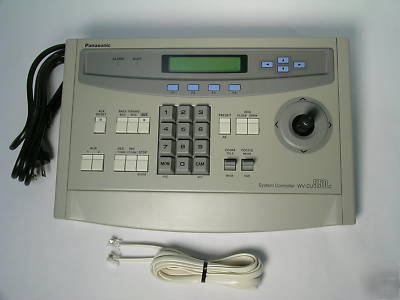

The ergonomically designed controller WV-CU550C can be used for set up, camera control and video routing. Two line character LCD display and function keys provide simple and easy operation
The WV-CU550C System Controller, when combined with the WJ-SX550C Matrix Switcher and WJ-AD550 Extension Unit,
enables control of the following functions:
Routing of up to 128 cameras to any one of 16 monitors.
Remote control of up to 128 cameras and auxiliary equipment by using optional receivers and accessories, including:
1. Remote control of Pan-Tilt Head and Camera Housing.
2. Remote control of Motorized Zoom Lenses: Focus, Zoom and Iris.
3. Remote control of camera settings, including Electronic Sensitivity Enhancement, Electronic Shutter, Electronic Zoom,
Selection of various sequence functions such as Program Sequence, Tour Sequence and Group Sequence.
Additional features of the WV-CU550C include:
Up to 8 WV-CU550C System Controllers can be connected in a system by using standard RS-485 shielded 4-wire twisted
pair cable. Can also be combined with standard communication media such as modems, fiber optics and microwave can
Ergonomic design reduces the number of switches to only those with common functions. Secondary functions are
accessed through function keys.
Flexible design allows for either table-top or rack-mounting.
