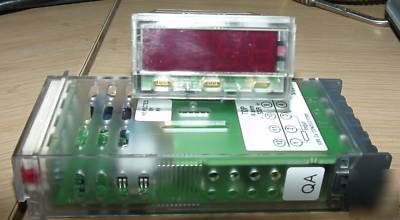

Temperature controller pid honeywell DC70A ssr drive
1. Europe: UK / France / Germany = 12 US Dollar
I have followed the menus as shown in the operations manual
* I was able to follow and setup the various parameters called out in the manual. The one exception was that the parts callouts below mention the controller is a universal input type. I could only seem to get it to work with an RTD. ( resistive temperature device )
* The temperature scale appears to be centigrade and has a maximum of 550 degrees C
You can see more information in the following pdf documents
* Part number options call out
* More detailed parts number options call out
From the wiring diagram you can see that you need to hook up an RTD and an SSR ( solid state relay ).
