23 cubic foot stainless steel hopper and screw conveyor

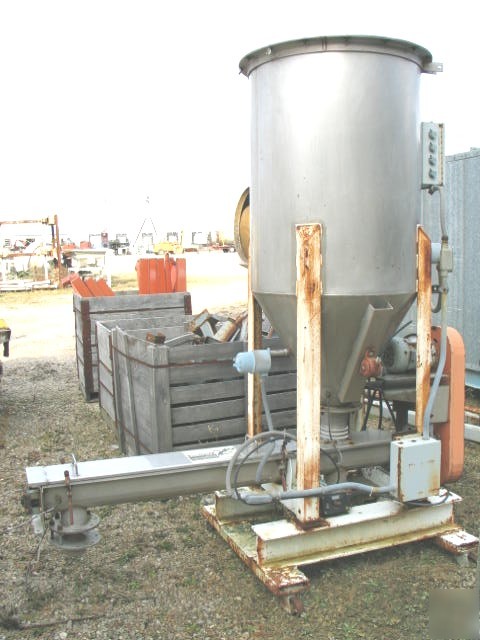

23 CUBIC FOOT STAINLESS STEEL HOPPER AND SCREW CONVEYOR
HOPPER IS 32" DIAMETER; 42" STRAIGHT SIDE; 22" LONG CONE; 2 BINDICATORS ( HIGHS AND LOW) ; 2" PNEUMATIC INLET TO BIN FOR PNEUMATIC CONVEYING; 5 SOLENOID VALVES AND TIMER; 14 CAGES 24" LONG X 4.5" DIAMETER, NO CLEAN AIR PLENUM; SCREW IS 4" DIAMETER X 51 C/C. 4" INLET AND 4" OUTLET FLANGED WITH DROP THRU OUTLET WITH SLIDE GATED VALVE. 4" X 68" LONG STAINLESS STEEL SCREW CONVEYOR WITH 1 HPM MOTOR, 208/220/440 VOLT 1745 RPM, 1.15 S.F. AND V-BELT SHAFT MOUNTED SPEED REDUCER. UNIT IS MOUNTED ON A FRAME WITH WHEELS. GOOD CONDITION.
