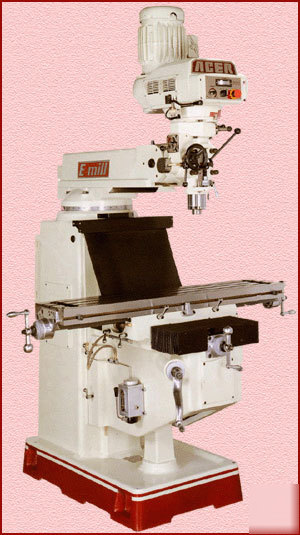

50" Table 3HP Spindle Acer E-mill 3VKH VERTICAL MILL, Special Package w/DRO & Power feed
MODEL: E-MILL 3VKH w/Special Package
Newall 2 Axis DRO & Align Power Feed on Table
LONGITUDINAL TRAVERSE: 32-1/2"
QUILL DIAMETER CHROMED: 3-3/8"
QUILL POWER RATE: 0.0015", 0.003, 0.006"/REV.
SPINDLE SPEED: VARIABLE SPEED (60 ~ 500 ~ 4500 RPM)
Newall DRO (Topaz, 2-axis, 16x36" travel, 0.0002" Res. Scale
Align Power Feed for Table Longitudinal Travel
3 HP motor with fan cooling system dissipates heat
Grease fitting for lubricating the bull gear.
One piece quill pinion & shaft.
Precision hand scraped contact surfaces between turret and
X, Y & knee axes hardened & ground to HRC 52 .
Vector-type AC frequency inverter drive.
Hardened & ground table top to HRC 52 .
Allen-Bradley electrical components.
Extra oiler lubricates the high-low moving device.
Extra oiler to lubricate the quill.
Precision ground ram ways within 0.0004" accuracy.
Precision ground finished lead screws.
Precision ground table guide line to 0.0002" over 20".
Standard accordian type way cover.
3 HP Spindle Motor: U.S. made Baldor Super E
Inverter Control Variable Speeds: Yaskawa or Toshiba
U.S. made Allen-Bradley Electrical Components
Precision Grinding Head Housing; Electric Brake
Precision Spindle with ABEC-7 Bearing
Chrome Plated & Precision Ground Spindle Quill
Precision X, Y Axes & Knee by Hardened & Ground Square Ways
Rigid Meehanite GA-50 Casting; One Shot Lubricator
Align Power Feed - Cross or Knee
Servo Longitudinal Feed (M-9121-140 / M-9121-150)
Servo Cross Feed (M-9521-140 / M-9521-150) Installation Fee
12" Rotary Table (Vertical & Horizontal)
Coolant System (Not Installed)
R-8 Collets (1/8" - 3/4"; 11pcs/set)
Torque-Rite Automatic Air Power Draw Bar (Not Installed)
Kurt Mechanical Air Power Draw Bar (Not Installed)
Kurt Automatic Air Power Draw Bar (Not Installed)
Larger 10" x 54" Table Upgrade
