Inficon lds 1000 helium leak detector system warranty

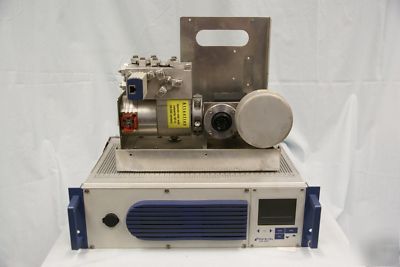

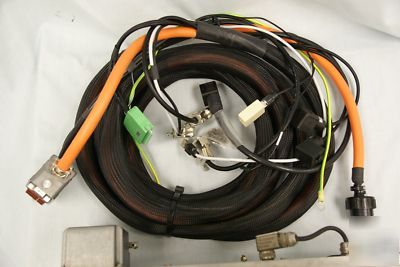

This Inficon LDS 1000 Modular Leak detection System has been thoroughly tested by our technicians and is in excellent working order. Everything shown in the pictures is included in this listing. We are including a 30 day VTI warranty* with this system.
Please see information from copied from Inficon literature below. We can't be responsible if any of this information is incorrect, so make sure to do your own research as well.
The LDS 1000 is a helium leak detector for universal integration in industrial leak testing systems (vacuum or sniffing method). The detection system has been separated from the power supply electronics so that the LDS 1000 may be adapted to the particular application with great flexibility.
* Fast response time for short testing cycles
* Measurement of the true leak rate of the test sample while simultaneously pumping down the test chamber (partial flow operation)
* Control and acquisition of data via programmable control compatible signals or RS 232 C interface
* Switching over from vacuum leak detection to sniffer leak detection upon a single key press allows for immediate pin-pointing of the leak during the same test step
* The operating unit may also be detached from the instrument
* Control and data acquisition software LDS-WARE (optional)
* Chart recorder output 0 - 10 V lin/log for logging the leak rate and the forevacuum pressure
* Calibration through internal calibrated leak also externally or dynamically while pumping down is in progress
* Electronics module prepared for mounting in a 19" rack (3 HU) to offer protection against dust, high temperatures or electromagnetic interference
Smallest detectable helium leak rate:
FINE mode (mbar x 1 x s-1) 5 x 10-11
GROSS mode (mbar x 1 x s-1) 3,5 x 10-10
Sniffer mode (mbar x 1 x s-1) 1 x 10-7
Units of measurement (selectable): mbar x l x s-1, Pa x m3 x s-1, Atm x cc x sec-1, g/a, ppm
Max. inlet pressure (mbar (Torr)) 3 (2.25)
Ion source 2 yttrium/iridium long life cathodes
Trigger relays/status relays 4 / 3
Control inputs Programmable control compatible (max. 35 V)
Chart recorder output lin/log (V) 0 - 10
