2007 komatsu SK815-5N skid steer loader **

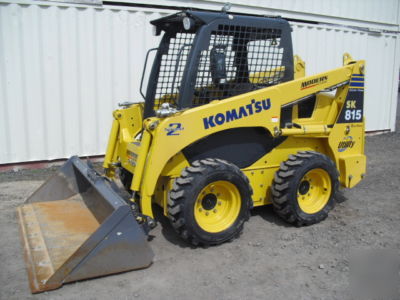

2007 Komatsu SK815-5N Rubber Tired Skid Steer loader.
338 hours - SUPER FLOW Hydraulics
Located: PORTLAND OREGON / Wilsonville, OR 97070
Yanmar Turbo Diesel Super Flow Hydraulics.
3rd Valve. - SUPER FLOW hydraulics.
Easy to use Travel and Loader PPC Joysticks
Low effort Proportional Pressure Control (PPC) joysticks operate travel and loader functions. Easy to use PPC controls help operators of all skill levels work precisely and efficiently all day long.
Maximum Performance and Precise Control
Komatsu s smooth and precise hydraulic system lets the operator feel the performance of the machine. The threespool open center control valve is designed for both single and simultaneous movements to achieve excellent controllability in the positioning of the bucket.
Standard Universal Attachment Quick Coupler

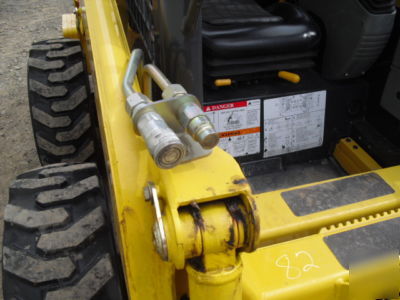

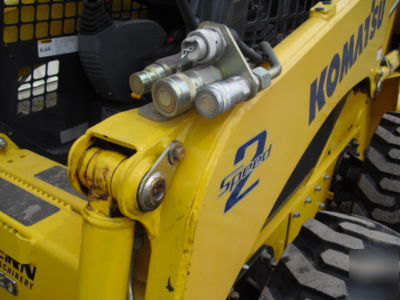

A universal quick coupler enables common attachments to be changed quickly and with little effort. The Komatsu coupler is compatible with all attachments utilizing the universal skid steer coupler. Auxiliary hydraulics with flat faced connectors are standard equipment as well.
The auxiliary hydraulic control provides excellent hydraulic power to front mounted hydraulic attachments. The auxiliary hydraulic flow can be metered from 1 to 16 GPM in either direction or locked into continuous full flow. An auxiliary override option is available allowing the operation of attachments requiring the operator to be outside the cab.
THIS Machine has SUPER FLOW Hydraulic
High flow auxiliary hydraulic system
The Komatsu SK815 skid steer loader has one of the longest wheel bases in its class, 1041 mm 41", giving the operator a stable ride and an excellent platform for operating high production attachments.
Patented Komatsu Automatic Power Control hydrostatic travel system is designed to allow full utilization of engine power. The operator can work with full engine power during the toughest job site applications without worrying about engine stall outs.
The large top and rear tempered glass windows, sloping hood, elevated seat platform, and the large side screen area offer a superior view of the bucket, cutting edge, and work area providing an excellent view of the work at hand as well as the job site.
Super Flow Hydraulics (Optional)
The Super Flow Hydraulic system increases the available oil flow for attachments from 16 GPM to 26 GPM and includes case-drain and electrical connections. The joystick mounted control system incorporates momentary reverse flow and multiple electrical inputs enabling the SK815 to power most attachments, making it a very flexible and productive machine.

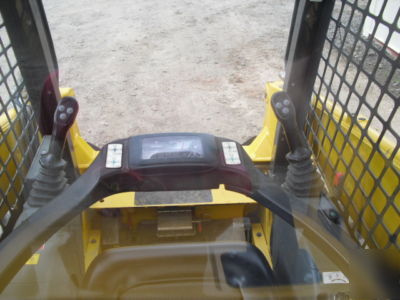

Komatsu has enhanced operator productivity and efficiency with technologically advanced controls and information systems. The operator arm rest bar incorporates a LCD gauge panel and warning light system. The joystick control levers include switches for horn, two speed travel, loader arm float, and attachment control functions.
Komatsu s standard equipment two-speed travel system allows for low impact shift-on-the-go speed changes between 10.5 kph 6.5 MPH work range and 16 kph 10 MPH travel range. This feature allows the operator to reduce load and carry cycle times as well as travel times between job sites.
Enhanced Loader Arm and Bucket Control
The hydraulic self leveling (up only) bucket with 1795 kg 3950 lbs. breakout force enhances the productivity of the operator on the job site. The 30 rollback angle and 45 dump of the bucket provide good load retention over rough terrain and good material flow in the dump cycle.
12 volt electrical outlet in Cab ( for your G.P.S. or cell phone )
Auxiliary hydraulics over-ride control
Master electrical disconnect switch
SUPERFLOW auxiliary hydraulics version, with additional auxiliary hydraulic circuit for attachments

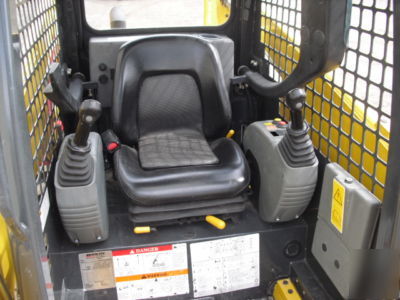

Proportional Pressure Control (PPC) joystick levers. The left hand joystick controls the travel, the right joystick controls the loader equipment. The PPC foot pedal controls the auxiliary hydraulic circuit for attachments. An operator presence system neutralizes control system when operator exits the cabin. Control pattern change valve is optional equipment. The optional control pattern splits the travel and the loader controls between both joystick levers.
** I love this operator arm rest bar **
Trottle controlls can be Set on left side controll lever - and Over Ride foot Pedal.
Questions: 1-(***)-380-3922 or (***)-545-0007
http:// /watch?v=1Tdmd3NYD9k
Operating weight of machine with standard bucket, full tank of fuel and 176 lb operator 5,785 lb
