[2X] hp 44476B microwave switch boards + [3X] 8764B

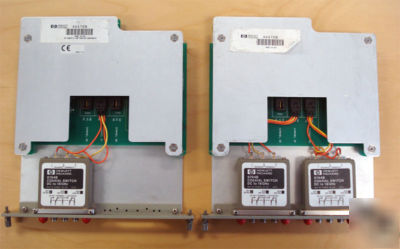

Selling two Hewlett Packard / Agilent 44476B microwave switch boards, along with three HP / Agilent 8764B Coaxial Switches (DC to 18GHz.)
The Agilent 44476B Microwave relay driver module brings multi-port 50/75 ohm coaxial switching flexibility to your test system. The Agilent 44476B panel has two sets of mounting panels, so any two Agilent 876XX coaxial switches can be mounted on this module. The Agilent coaxial switches come in three-, four- and five-port configurations. This flexibility allows you to use the different switches for a variety of applications, constructing transfer switches, switch matrices and more. Using the Agilent 8762x in conjunction with the Agilent 44476B will allow you to extend your automated three-port switching to 26.5 GHz. Coaxial relays must be ordered separately. The Agilent Coaxial Switches that can be used are listed in the Features section. The Option 011 designates the switches for a coil voltage of 5V DC.
5 V solenoids (TTL Logic NOT available)
* Frequency range DC to 18 GHz
* Unterminated multiport coaxial switch with five RF ports
* Insertion loss: < 0.20 dB to 2 GHz, < 0.5 dB to 18 GHz
* SWR (through line): < 1.1 to 2 GHz, < 1.2 to 12.4 GHz, < 1.3 to 18 GHz
* Isolation: > 90 dB to 18 GHz
* Long life > 1 million cycles
* High repeatability: < 0.03 dB typical
* Current interrupts and position indication capability
