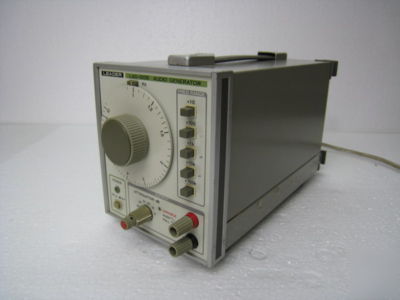

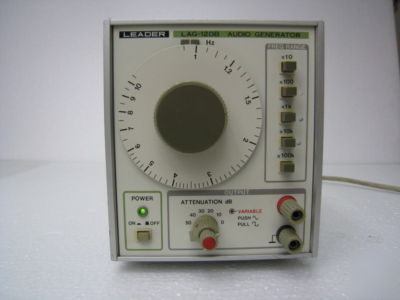

The LAG-120B precision wide band audio sine/square wave generator is used for testing and servicing audio equipment. Frequency dial accuracy is 3% across the 10 Hz to 1 MHz range. The rotary 10 dB step attenuator and the 20 dB variable control offer an attenuation range of 70 dB. The rated output is 3 Vrms into a 600 W load and approximately 25 V p-p open circuit. A terminator is provided as an accessory for 600 W source impedance requirements.

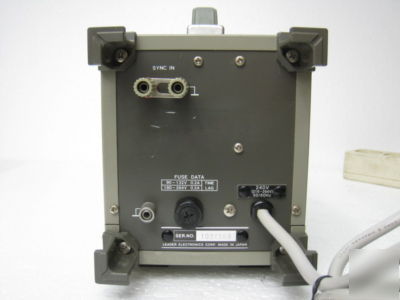

Double-geared frequency dial provides smooth, backlash-free operation covering 10 Hz to 1 MHz. SYNC IN terminals are provided on rear panel to synchronize the output to an external frequency source. The frequency range is selected by 5 decade switches making it convenient to check frequency response quickly without the need to reset the dial. The outputs are 3 V rms max for sinewave and 3 V p-p for square wave into 600 W . The 6-step attenuator controls output levels in 10 dB steps over a range greater than 50 dB.
