New saniflo saniswift gray water pump grey sfa #021
SANIFLO SANISWIFT GRAY WATER PUMP, NEW, PART#021

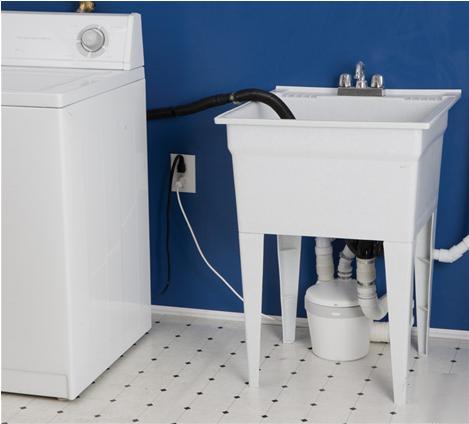

These pumps are fantastic solutions for bar sinks or basement apartments as the footprint of the pump is small but the performance is excellent. They can easily fit into a cabinet or in other tight areas.
Warranty: 2 Years from date of Purchase, backed by mfg.
Here is a link to the online manual from the Saniflo Site: http://saniflo.com/pdf/install/SWIFT_US.pdf
The Saniswift is a gray water pump that is ideally suitable for use in a
basement apartment or anywhere in the house where additional fixtures
are most wanted. It will pump the waste water away from a variety of
sources such as: a kitchen sink, laundry sink, washing machine
(indirect connection), dishwasher, bar sink, etc.
The Saniswift's modern style prevails over other bulky relics. This
system offers powerful and economical pumping action in a compact,
contemporary design. With unprecedented performance and features,
this pump is unmatched in its class.
The inside of the Saniswift comprises of a pressure switch and circuit
board assembly, which starts and stops the unit, and the motor, which
drives the pump. When the water enters the Saniswift, it activates a pressure switch
which in turn starts the motor. The motor is sealed for life in an oil filled
enclosure. A spindle/shaft drives the impeller and therefore the moving
parts are kept to an absolute minimum.
The unit pumps the effluent upward to 14 feet and/or 140 feet horizontally (with gravity fall). Once the water is discharged and the water level in the container goes down, the pressure switch deactivates the unit until water enters the unit again. A normal operating cycle for the Saniswift can be as short as 2 - 10 seconds depending upon the discharge pipe run configuration; power consumption is therefore minimal.
In addition to a sink, the Saniswift will also accept and discharge the waste water from a variety of other sanitary fixtures such as: a kitchen sink, a shower, a urinal. When adding a shower, a base will have to be constructed.
This base should be made out of a 2" x 6" (minimum) or 2 x 8 (recommended) on edge, to allow for the installation of a P-trap and the required 1/4 per foot gravity flow towards the pump unit.
The waste water from other sanitary fixtures is discharged into the Saniswift via two 1-1/2 inch inlets, on either side of the housing and an additional inlet on the top of the unit. A non-return valve, which comes already assembled on the discharge rubber connector, prevents back flow into the unit.
This unit has been designed with a vent connection on the lid. All plumbing codes require connection to a vent system. Please note that the vent system should be a two-way air vent.
It is also highly recommended for the gray water pump to be connected to a Ground Fault Interrupter (GFI) circuit.
The Saniswift is a compact unit with attractive rounded contours that fits neatly into tight spaces.
The Saniswift has been certified to American and Canadian Standards. Electrical standard UL 788, CA: Electrical
The Saniswift comes with the pump case only.
Flow rate at max head USG / MIN
14 ft:18gal/min;3ft: 24gal/min
Gravity fall on horizontal installations
Dimensions (measured from floor level)
Polypropylene, C.R.P., stainless steel, Neoprene
