Tractor colour flat screen monitor +rear view camera
TRACTOR COLOUR FLAT SCREEN MONITOR +REAR VIEW CAMERA

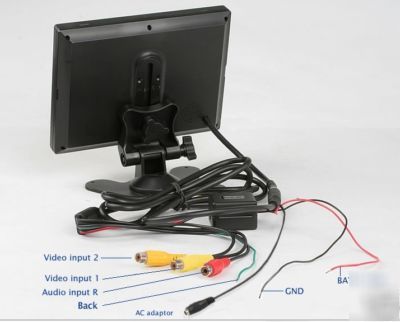

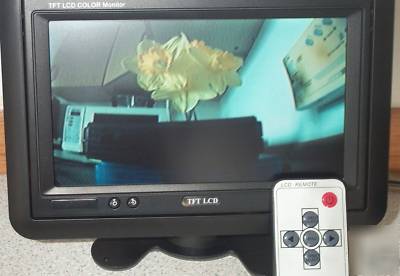

This is a rear view observation colour camera with a 7 inch flat screen TFT LCD colour monitor. Because of its small size the monitor will fit easily into the tractor cab. The system includes a remote control which can be used to bring up a menu on the screen to make adjustments eg. brightness, contrast and colour etc. The image can also be flipped horizontally or vertically from the remote. The unit comes with one colour camera but the monitor can switch between two cameras if required.

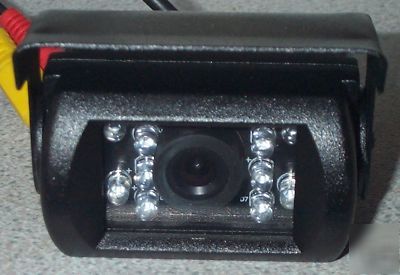

The camera is weatherproof and comes in a metal case with a mounting bracket and adjustable sun visor. It also has built-in infra-red LED's to allow it to pick up objects in complete darkness. Extra camera cost 75. The length of the lead between the camera and the monitor can be made up to your requirements.
VAT IS INCLUDED IN THE PRICE AND A VAT INVOICE WILL BE PROVIDED.
Resolution: 1440(W) X 234(H)=336960pixels
Blue screen:Blue screen when no signal
Wire Waterproof Reverse Car Infra-red Color
Camera Pickup device 1/4 Image sensor
Validity pixel: PAL 512*582, NTSC 512*492
Sensing Area: 5.78mm*4.19mm / 4.69mm*3.54mm
Scanning System: 2:1 Interlace
Horizontal Sync. Frequency: 15.625KHz /15.734KHz
Vertical Sync Frequency: 50Hz /60Hz
Min illumination: 0 Lux/F1.2 with IR
Electronic Shutter: 1/60~1/15000 Seconds
Any questions please ask. We repair all types of electronic control boxes, Tramliners, Balers, Sprayers, Fence energisers etc. etc.
