Brillion soil builder CD73 w/ 7 shanks and disc exc

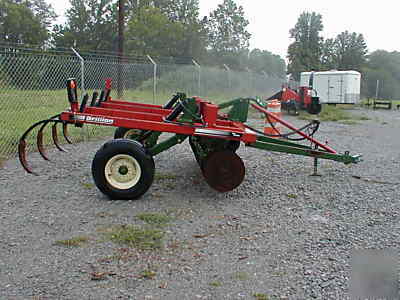

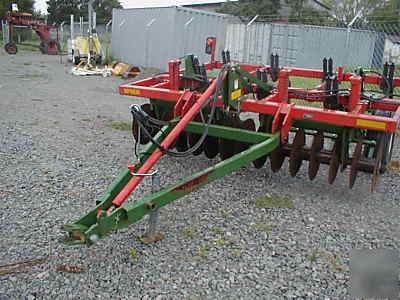

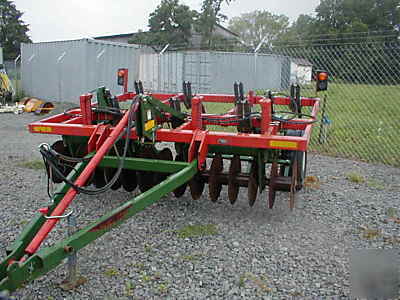

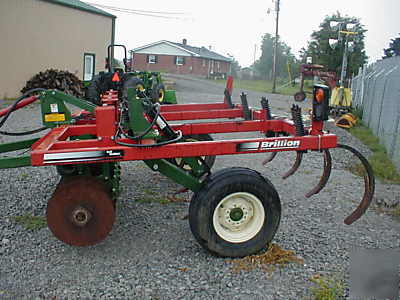

Brillion soil builder CD-73 10' wide transport disc with 7 reversible shanks. The implement is in near new condition. Save big from a new one! hard to find! We can arrange transportation anywhere. Call with questions or to see it, Dave Frances (***)-849-2270. Dealer for 32 years! Thanks. Bank wire transfers, cash, or checks once they clear.
MANUAL DEPTH CONTROLLED HYDRAULIC DEPTH CONTROLLED
CUTTING COULTERS CUTTING COULTERS
MODEL (Approximate weight) MODEL (Approximate weight)
CD-73-1 4481 lbs. HCD-73-1 4751 lbs.
Width of Cut Frame Width No. Coulters Types of Shovels Shank Mount
8'9" 9'7" 15 Standard Dual Spring Loaded

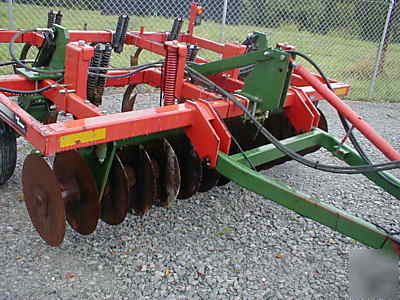

The Brillion CD model Soil Builders feature 20" coulters on 7 1/2" centers. The 1 1/2 square coulter shafts are 69% stronger than round
shafts. The Soil Builder features a weighted frame for better trash cutting and soil penetration. Shanks are on 15 spacing and feature 29 of
underframe clearance. Three styles of 4 twisted shovels are available: The standard three piece, (H) hard surfaced three piece, and (A) 4

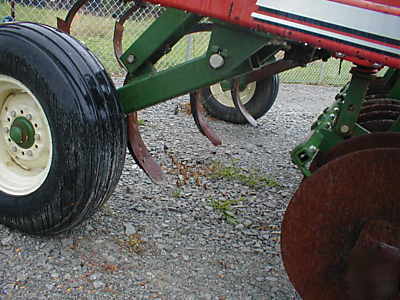

one piece twisted shovel. Exclusive parabolic shaped chisel shanks penetrate the ground easier, requiring less point pressure to hold shanks
in the ground. Point pressures adjustable from 550 pounds to 825 pounds. Safety lights, hydraulic cylinders and hoses are included. 5 Shank
Models include 2 - 9.5L x 15 6 Ply Tires. 7 Shank Models include 2 - 11L x 15 8 Ply Tires. Approximate Set Up Time: 1 1/4 hour per shank.
Drawbar Horsepower Required: 15-20 HP per shank. *For lighter soils specify the 2J-644 shank in lieu of the 3J-971 shank used on the 1K-
724 Soil Builder Shank Assembly. Price remains the same.
