Hour meter , hengstler elapsed time counter
Hour Meter , Hengstler Elapsed Time Counter
7-digit display indicates elapsed hours
Count Range: 0 to 99999.99-hours
First 5 digits (hours)-White Digits on Black Background
Last 2 digits (1/100-hours)-Red Digits on White Background
Not resettable-would only return to zero if allowed to run continuously for more than 11-years
Synchronous Motor Driven, 120VAC/60Hz
Electrical Connection: Qty(2) Screw Terminals
Operating Temperature: 10 deg C to 50 deg C (14 deg F to 122 deg F)
Mounting Hole Dimensions: 45mm x 22mm
Six optional panel adapter plates (not included) may be available from the manufacturer to allow direct replacement of various rectangular, square and round instruments.

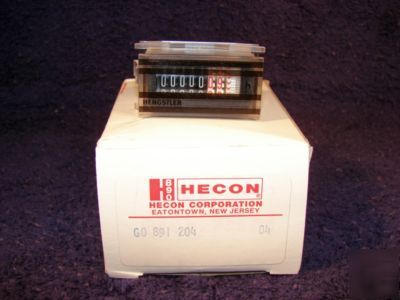

These hour meters are packaged in "Hecon" branded boxes, but the front panels of the instruments are marked "Hengstler." "Danaher Industrial Controls" owns both Hecon and Hengstler.
