New mark 10 EG025 digital force gauge $795 value
ADVANCED FORCE GAUGES SERIES EG
The Series EG is an ideal solution for compression and tension applications requiring accuracy and flexibility in the entire 0.12 lb to 500 lb range. Features include selectable units of measurement, automatic peak memory, simple pushbutton calibration, programmable automatic shutoff, initial status of units and mode of operation, permanent configuration memory, and optional outputs (RS-232, Mitutoyo, and analog). Reversible aluminum housing allows for hand-held use or test stand mounting.
Reversible Housing - A Mark-10 Exclusive
* Compatible with all Mark-10 test stands and grips
* Selectable units of measurement
* Programmable default configuration
* Peak memory for tensile and compressive forces
* Programmable automatic shutoff
* Permanent configuration memory
* Optional RS-232, Mitutoyo and analog outputs
* Reversible aluminum housing for handheld use or test stand mounting (see below)
* Same housing size for all capacities
* Accuracy: 0.3% of full scale 1 digit
* Safe overload: 150% of capacity
* Battery life: 8-10 hours per charge
* Environmental requirements: 40 F - 100 F [5 C - 45 C], <96% humidity (non-condensating)
The EG is compatible with all Mark-10 force measurement test stands. It is shown here in a compression testing application, mounted to an ES30 with optional items: digital travel display and extension rod.

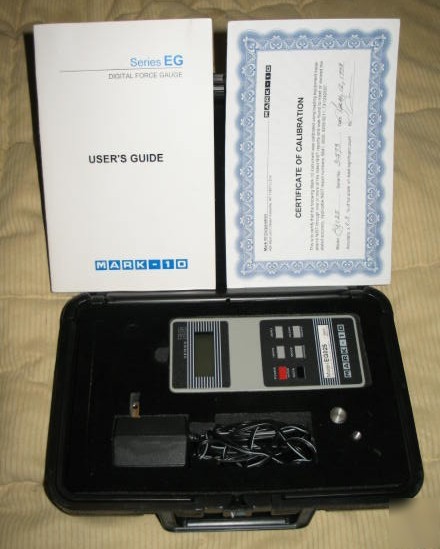

Series EG force gauges are supplied in a cushioned carrying case with AC adapter, rechargeable battery, hook, flat & user's manual.
EG025 0.25 x 0.0002 lb, 100 x 0.1 gF, 1 x 0.001 N, 110V
* I will not be responsible for any damages incurred while installing or operating this item.
