Nos tackle / snatch block 10,000 lbs deuce 2 1/2 ton

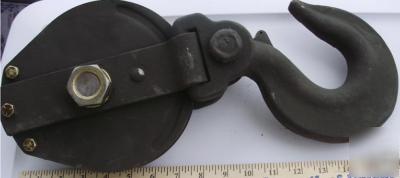

NOS military surplus snatch block. Accessory for: TRUCK, CARGO, DROPSIDE 2 1/2-TON 6X6 W/E
NSN 3940001116693 , Part Number 11631700 .
STYL STYLE DESIGNATOR 16 STRAP AND PLATE PATTERN
AMRR SHEAVE OUTSIDE DIAMETER 6.000 INCHES NOMINAL
AMRT CENTER PIN DIAMETER 1.252 INCHES MINIMUM AND 1.254 INCHES MAXIMUM
AMCN LOCKING STYLE 1 SAFETY LOCKING
ANNQ MATERIAL AND LOCATION BRONZE BEARING AND STEEL CENTER PIN AND STEEL, QQ-S-681 SHEAVE AND STEEL SHELL
ANNR SURFACE TREATMENT AND LOCATION ENAMEL OVERALL
AMWZ SHEAVE BEARING LUBRICATION METHOD SELF-LUBRICATED
AMCT TACKLE ACCOMMODATED TYPE WIRE ROPE
AMXC MAXIMUM TACKLE DIAMETER ACCOMMODATED 0.531 INCHES
AMXD TACKLE LOCKING DEVICE INCLUDED
AMDC ANTITOPPLING DEVICE NOT INCLUDED
AMXF ATTACHMENT STYLE 23 FLATTED STIFF SWIVEL HOOK
AGCS MAXIMUM LOAD RATING 10000.0 POUNDS
