New 3 axis dro mill lathe package linear digital scales

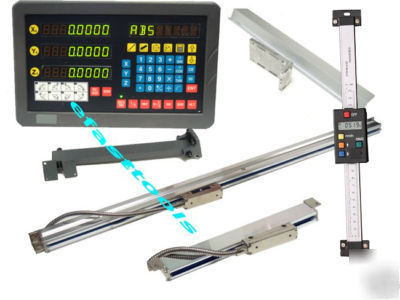

3 Axis Digital Read Out Mill Lathe Package Fits On Universal Size machine
All 3 Scales Connect to DRO Display
Precision Linear Glass Scales Plus Digtal Scale
Brand New Limited 3 Years Warranty
* Resolution: 0.0002", repeatability: 0.0002"
* Bolt hole patterns, centerline calculation
* Preset set and zero reset , tool error compensation
* Absolute / Incremental , Inch / Metric
* Message Prompts, Memory back-up
* 80V-240V, Can be used Globally
* 3 Scales can be connect to the display, two linear scale and one digital scale
* Read all 3 axis scales number change in one display unit.
multifunctional 3 Axis Display Works on Both Mill and Lathe
Able to Adjust Resolution Digits
Quill Scale Can Be Connected Though Display As Z Axis
* Max. response speed: 60 In / Sec.
* sealed anti oil and coolant
Scale Thickness G: 1.2" / 29mm
Digital Counter Thickness I: 1.1" / 26mm
Each scale come with a fitted aluminum cover and mounting screws
You may need to make your own mounting bracket to install Y Axis Scales. It's super easy, see installation picture below. Many people don't like the original one and they make their own to fit on machine
Digital Scale Connect to Display
X Scale installed on the back of the table
Y Scale installed under table with brackets
Z quill digital scale is able to connect to 3 axis display, and fully compatible with all function of display pad.
No battery needed on quill scale
You can customize scale travel by cutting shorter
You need to think about how to install quill scale
X scale installed along the bed
Z cross scale installed under too post
T axis tailstock scale is able to connect to 3 axis display, and fully compatible with all function of display pad. See picture below
You need to think about how to install tailstock scale.
Scale Overall Length (>Travel length) X x Y
I have 6" and 8" travel scales may apply
Scale Overall Length (>Travel length) Z x X
If none of option above will fit, you can pick any two linear scales below,
Available scale size for both mill and lathe:
Scale Overall Length (>Travel Size)
Digital Scale For Both Mill and Lathe Available:
One Multifunctional 3 axis display unit with arm and stand
Any size two glass scales with fitted covers and mounting screws
two scale mounting bracket. You may need make your own
Display operation manual and scale installation guide
All installation hardware, much more than what you see from picture
Money order and casher's check are accept
Offer 3 years limited warranty on all display and scales. There is a 30 days return policy.
Don't worry the quality, as long as you can install properly, nobody return. Thousands of people installed already, and it's easy and professional.
