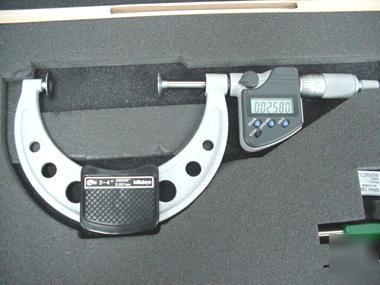

Mitutoyo 323 353 3-4/50-75MM disc micrometer

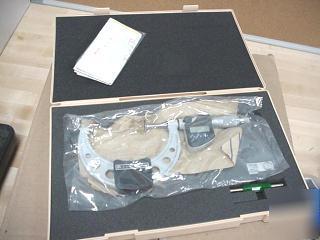

3-4" DISC MICROMETER W/STORAGE BOX
Accuracy: Refer to the list of specifications.
(excluding quantizing error for digital models)
Resolution*: 0.001mm or .00005"/0.001mm
Flatness: 1 m / .00004" for models up to 100mm / 4"
1.6 m / .000063" for models over 100mm / 4"
Parallelism: 4 m / .00016" for models up to 50mm / 2"
(4+R/50) mfor models up to 100mm
(5+R/75) m for models over 100mm, R=max.
Measurable module: 0.5-6 (0.7-11: models over 100mm)
Battery*: SR44 (1 pc.), 938882
Battery life*: Approx. 1.2 years under normal use
*Digital models **Analog models
Origin-set, Zero-setting, Data hold, Data output, inch/mm
Alarm: Low voltage, Counting value composition error
