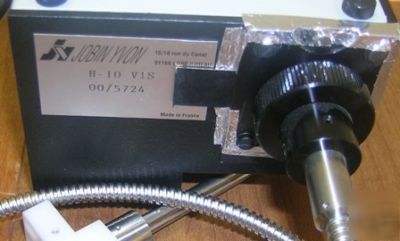

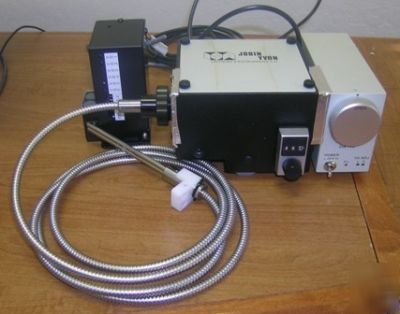

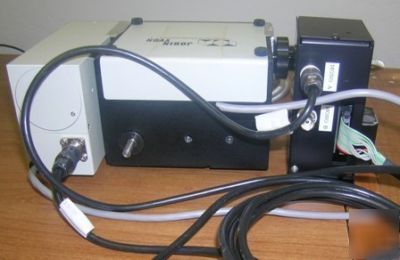

Horiba jobin yvon h-10 monochromator h-10VIS
http:// /misc/103.jpg
http:// /misc/104.jpg
http:// /misc/105.jpg
Product Overview (from manufacture website)
The H-10 Monochromator is a small, versatile instrument and has several applications. You can use it as follows:
* As a Variable Filter the H-10 is very useful in applications for selecting a range of wavelengths from a continuous source. With its metal drop-in slits, it can be used with focused arc lamps up to 1Kw.
* Low resolution absorption transmission and fluorescence applications.
The H-10 features HIGH SPECTRAL PURITY. High stray light level rejection of 10-5 at 8 nm from the 632.8 nm laser line.
We offer a wide range of accessories for optical configurations including light sources, detectors, optical benches, motors, recorders and computer interfaces.
Spectral Dispersion (@ 500 nm)
The H-10 is built around an aberration-corrected concave holographic diffraction grating. This element plays a triple role: collimator, dispersing and focusing system.
This is assured by its f/3.5 aperture
