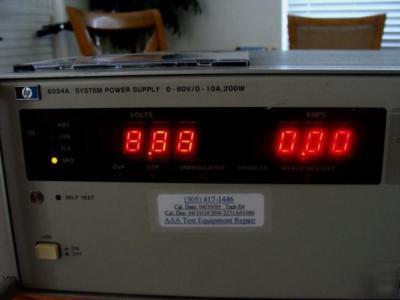

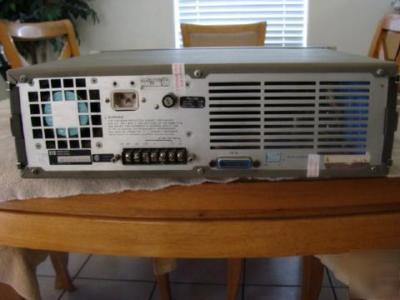

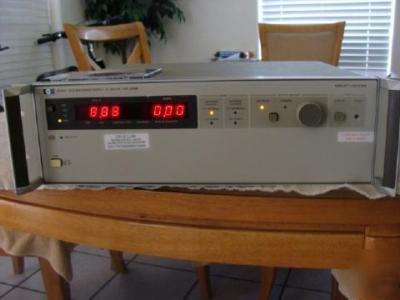

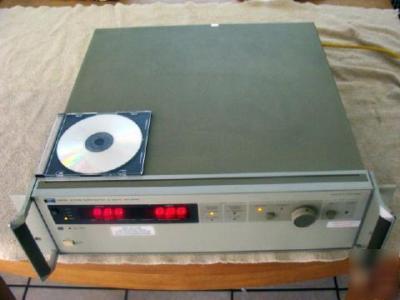

Hp - agilent 6034A 60V/10A, 200 w system power supply
The HP - Agilent 6034A, 60 Volt, 10 Amp, System Power Supply supplies up to 200 Watts of power and is a comprehensive solution for HP-IB system power supply applications. Additional 6034A Features:Provides maximum rated power over a wide range of voltage and current, Autoranging output: 0 to 60 Volts, 0 to 10 A (200 Watts), Combines FET switching technology with an internal microprocessor-based HP-IB programmer.
SPECS: *** Complete HP-IB programming of voltage (15 mV/12 bit resolution), current (2.5 mA/12 bit resolution), and Overvoltage protection limit *** Allows output voltage and current to be read via the HP-IB *** Full operating status readback *** Autoranging output: 0 to 60 Volts, 0 to 10 A (200 Watts) *** Service request capability *** Built-in self tests and diagnostics for continuous reliability.
