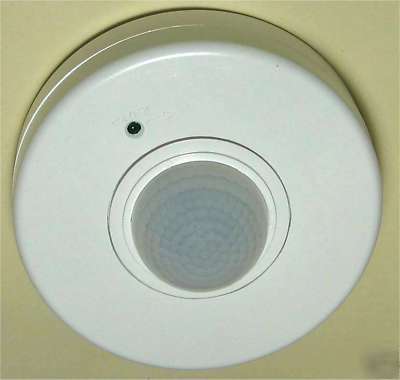

New ceiling pir occupancy motion sensor switch 360° wht
PMSC36 Series Ceiling PIR Occupancy Motion Sensor Auto Switch
Onstate passive infrared (PIR) occupancy motion sensors automatically shut off power to lights when the room is not occupied to provide energy savings. It could be used to meet local energy use standards and requirements. The PMSC36 uses three high sensitivity sensors and a multi-level, high-density Fresnel lens to provide overlapping 360o coverage while reducing no-sensing zones for reliable, consistent operation. It features a relay output, adjustable delay time, sensitivity and daylight on level to suit multiple applications. The PMSC36 triggers the relay to turn on the lights once motion is detected and will reset the ON-time every time it detects motion for continuous operation. Onstate occupancy motions sensors have a short payback period (less than a year) and provide long-term energy savings. Please visit /Tech-specs/tech-specs.htm for more information on wiring and assembly. We provide full technical support on all our products.
Power: 100-130VAC, 50-60Hz, 4W Max. 120V or 240V or 24V models available.
Load Control: Relay (NO), 800W @100-130VAC.
Light ON: Adjustable, <3Lux to daylight.
ON Time: Adjustable, min: 8sec. max: 11min.
Sensitivity: Adjustable, min-max.
Status Indicator: Green LED activity
Dimension: 4.65 (D) x 1.3 (H) (W/O lens).
Note: Do not use in wet locations. Do not exceed the specifications of the unit. To be installed by qualified personnel only. We provide technical support on all our products.
Daylight mode light level (PHOTO)
The PHOTO function sets the light level for daylight mode. The relay will stay off in daylight mode. The PIR unit will operate normally again once the ambient light level is below the light level setting. Counter-clockwise direction (moon side) will decrease the light level for daylight mode. Clockwise direction (sun side) with require brighter light for daylight mode. If the adjustment is full clockwise (sun side), the PIR unit will always be on auto mode. Adjustment range: <3Lux to daylight.
Once motion is detected, the output relay turns on and the delay off timer starts. If there is no motion detected within the preset delay time, the timer will not reset and the relay will turn off the lights. Rotate the TIME adjustment counter-clockwise (- side) will decrease delay time. Clockwise direction (+ side) with increase delay time. Min: 8seconds. Max: 9minutes.
The SENS function sets the sensitivity of the PIR unit to sense motion. Rotate the SENS adjustment counter-clockwise (- side) will decrease overall sensitivity and decrease detection range. Clockwise direction (+ side) with increase sensitivity and detection range.
This function will force the PIR unit to trigger the relay to stay on regardless of motion detection. To activate the Always-ON function, shut power off for ~2 seconds then turn power back on.
The PIR unit will resume automatic operation if the power is off for more than 12 seconds then on again. This function also has a capacitor charge that delays the relay from turning on during the first initial power-up for up to 12s. This function can be disabled on some models (Instant-ON).
Instant-ON mode is Always-ON function permanently disabled. The PIR unit is always in AUTO-mode. Once power is applied, the relay will instantly turn on and the delay timer starts. Unlike the Always-ON mode that can accidentally be triggered, the Instant-ON mode will stay in AUTO-mode. This mode is suitable for use where the main light switch maybe intermittently switched on/off.
Data: Information, installation, warranty. Please download and read prior to purchasing and installation.
Please click or copy/paste link
http:// /Tech-specs/Info%20PMSC36%20PIR%20occupancy%20sensor%20Rev1-web.pdf
Info PMSC36 PIR occupancy sensor Rev1-web.pdf
This motion sensor is availabel in 120V/240/24V models. Always-ON mode can be permanently disabled. Please contact Onstate Technologies for more information. See data sheet for contact. (on-info @ onstatetech . com). If you have any questions, please contact us. We can provide in-depth details of products and applications.
Model:Part PMSC36S-1 standard model. PIR occupancy motion sensor, ceiling mount, 360o, 120VAC, adjustable controls, relay output.
x= voltage. S=120VAC(standard)
E=240VAC(Europe). Add $2 for 240V model.
L=24V AC/DC(low voltage), can be used with Leviton occupancy sensor power packs for line voltage relay control. Add $3 for 24V model
y=options. 1=Standard (Automatic/Always-ON function)
2=Instant-ON (Automatic/no Always-ON function). Add $4 for Instant-ON model.
3=AUTO(Automatic/Always-ON function disabled). Add $3 for AUTO model.
Please specify model when ordering. We will invoice you for the correct amount. Model PMSC36S-1 will be sent as standard.
