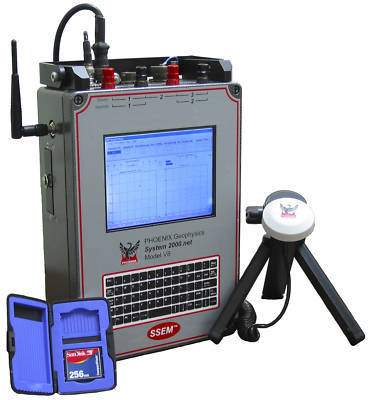

Phoenix geophysical multifunction receiver V8 6R
V8 Multifunction Receiver: Flexible, adaptable configurations
Lightweight, highly portable
No cable links required between network units or transmitter
Cable or wireless link to local network of auxiliary units
GPS-synchronized to transmitter and local network
MT, AMT Magnetotellurics with remote reference
Induced Polarization: Frequency and Time Domain, Phase and Spectral IP
All common Time and Frequency Domain Electromagnetics functions
All common Resistivity functions (Dipole, Schlumberger, or Wenner soundings)
Record or monitor time series data from any suitable sensor, including geophones
The V8 is the eighth generation
of receiver technology developed by Phoenix since 1975. The V8 builds upon many of the most attractive features of the highly successful Phoenix V5, V6A, and System 2000, including permanent GPS synchronization and light weight. The full-size ASCII keyboard and full-size, full-colour, sunlight-readable display give the operator hands-on control of the entire data acquisition process for all the most common geophysical techniques both controlled source techniques and natural source techniques (AMT, MT). The V8 has 3 magnetic channels and 3 electric channels. The magnetic channels can be assigned either to standard magnetic sensors or to TDEM sensors. The V8 can operate in stand-alone mode (usually for AMT and MT). In addition, it can serve as the hub of a local network of auxiliary 3-channel (3E) data acquisition units, which communicate with the V8 by wireless or optional cable. All recording units are permanently synchronized to GPS time and are optimized to operate with transmitters similarly synchronized to GPS time. No cable links are required between the networked recording units, or between receivers and transmitter.
Exploration surface to 50 km or more...
Oil and gas Kimberlites (diamonds) Earthquake research
Metals and minerals Geothermal reservoirs Engineering and
Groundwater Monitoring environmental
3 Magnetic 3 Electric Unlimited number of optional 3-channel auxiliary units (RXU-3)
10 000Hz to 0.00005Hz (20 000s)
On-board removable flash memory, 512MB (upgradeable)
One per channel 24 bits, 96 000 samples/s (main channels)
640 x 480 full-colour sunlight-readable LCD
Multi-pin, military-style connectors for sensor input, GPS, battery and ground connectors Four panel-mounted binding posts for electric field inputs (AMT, MT)
