jfk 5C lever collet closer a+ cond & can be modified

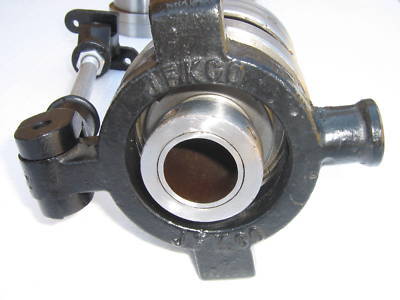

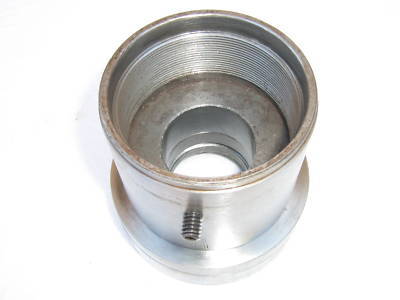

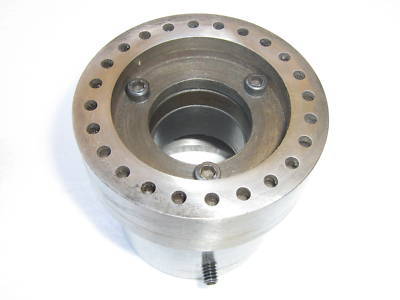

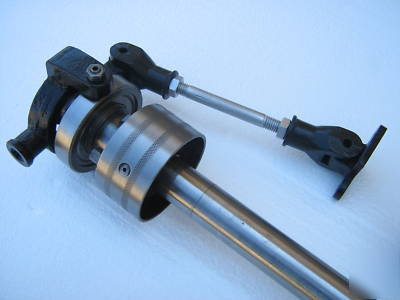

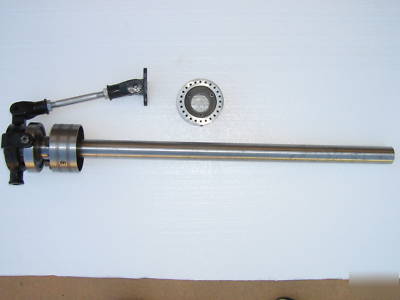

I really hate to call this unit "used". This GENUINE JFK AMERICAN MADE 5C PRODUCTION LEVER TYPE COLLET CLOSER came with our early 1980's REPUBLIC LAGUN 14" X 40" metal turning lathe and was hardly used. It is missing the main handle (easily fabricated from 1/2" steel round bar stock, thread one end 1/2"-13 and add plastic handle to the other end and you're done) and the two pins which hold the swing joints together (another easy fix as headed pins or bolts could be used here). This is a complete unit with indexing ring (24 holes) with threaded outboard spindle mounting hub and bracket swing joint that mounts to the lathe head. Collet draw tube is 22 1/8" long from edge of the shoulder where the male thread is threaded into the female thread in the shorter tube which goes through the housing / ball bearing assembly out to the end that has the female threads that mate with the 5C collet. I have completely cleaned up, oiled and repainted all brackets on this unit and it looks and functions like new!!!!
THIS COLLET CLOSER IS THE "PERFECT FIT" FOR AN EARLY 1980'S REPUBLIC 14" X 40" METAL LATHE.
I HAVE HAD EXPERIENCE IN MODIFYING THESE COLLET CLOSERS AND CAN TALK YOU THROUGH HOW TO DO THIS AND YOU CAN DO IT ON YOUR LATHE YOU ARE GETTING THIS FOR. GUYS, IT'S NOT "ROCKET SCIENCE" AND JFK COMPANY ALWAYS HAS FREE PHONE HELP AND TECHNICAL ASSISTANCE IN FIGURING THE DRAW TUBE LENGTH YOU NEED SO REST ASSURED, YOU CAN DO IT!!! MY CELL PHONE IS (***) 473-6201
IF YOU NEED A LONGER COLLET DRAW TUBE, JFK WILL MAKE YOU A BRAND NEW LONGER TUBE FOR ABOUT $80.00 WHICH WILL FIT YOUR LATHE MODEL AND LENGTH NEEDED EXACTLY. ALL YOU HAVE TO DO IS CALL THEM AND FURNISH SOME BASIC MEASUREMENTS THEY WILL TALK YOU THROUGH FOR YOUR MAKE, YEAR AND MODEL LATHE AND THAT'S IT!!! THEY HAVE CROSS REFERENCES OF MAKES, YEARS AND MODELS OF LATHES AND HAVE MADE 5C COLLET CLOSERS FOR JUST ABOUT EVERY LATHE EVERY PRODUCED.
IF YOU NEED A SHORTER TUBE, JFK WILL ALSO CUT TO LENGTH AND O.D. THREAD THE TUBE THAT IS ON THIS UNIT(MALE THREAD THAT FITS INTO THE SHORT TUBE THAT GOES THROUGH THE HOUSING / BALL BEARING ASSEMBLY) FOR $20.00 SO YOU CAN HAVE THIS PRECISELY DONE BY THE COMPANY WHO MADE THIS UNIT AND IT WILL FIT YOUR LATHE AND RUN DEAD ON!!!
SINCE THIS UNIT IS MADE BY AN INDUSTRY RESPECTED AMERICAN COMPANY THAT HAS BEEN IN BUSINESS FOR YEARS, ALL PARTS ARE AVAILABLE FROM JFK COMPANY AND WILL BE IN THE FUTURE.
WHY PAY BIG BUCKS FOR A NEW COLLET CLOSER WHEN YOU CAN GET BASICALLY THE SAME THING HERE???
