Allen-bradley ac/dc type 42SRP led wide angle proximity

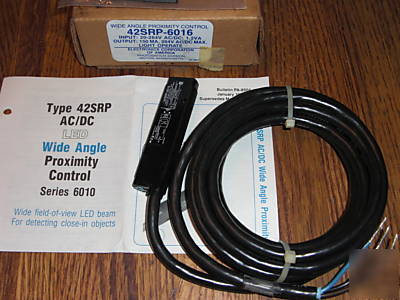

Allen-Bradley AC/DC Type 42SRP LED Wide Angle Proximity Control, Series 6010 Part # 42SRP-6016
Unused surplus item in original box w/ manual
The Type 42SRP Proximity mini-sized self-containing photoelectric control provides a means of detecting small objects at short range while ignoring background surfaces some distance away. The wide optical field-of-view permits detection of small objects such as syringe needles or even thread, over a wide area. It does not require that the object being detected be precisely located at a focal point. Instead, it is only necessary for the object to be within the relatively wide field-of-view.
* Wide field-of-view LED beam for detecting close-in objects.
* Min. size with maximum operating features: W1/2" x H 1" x D 3.6"
* Four ways to mount the control
* Modulated infrared LED beam for greater sensitivity
* Max. operating distance to 15" (.38m)
* Wide field of view - 62 degrees
* Operates from: 20 to 264 VAC or DC
* Low power consumption - 1.2VA
* Solid state power MOSFET AC/DC output
* Sensitivity adjustable over wide range
* Synchronous detection to minimize unwanted signals
* Protected against voltage line transients
* Fully encapsulated with thick-film microcirciutry for quality and reliability
* NEMA 3, 4, 4X, 5, 12 and 13, corrostion resistant, high impact housing
* LED alignment and output indicator
* Control includes 10 feet (3 meters) of UL recognized type SJTO cable (CSA certified type SJT)
* UL listed and CSA certified
