Datel dm-3100N digital led panel meter DM3100 DM3100N

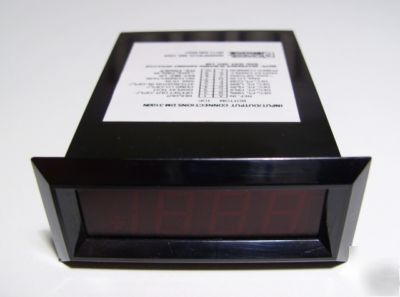

Datel DM-3100N Digital LED Panel Meter
~ TESTED, in Excellent Condition ~
The DM-3100N is a 3.5 digit Digital Panel Meter which uses solid-state self-illuminated, light-emitting diode (LED) displays. Their large size (0.56" high) and brilliant red light make them easily readable from many feet away. The DPM is contained in a compact low profile case which makes for higher packing density on test panel faces.
* balanced differential inputs, 5pA bias current, autozeroing with 80 db CMR noise rejection
* 1000 Mohm CMOS high Impedance inputs, +-1.999 Vdc FS range
* 3.5 digit, 0.56" high LED display, 5V-powered, ratiometric reference for drift correction
* Low Profile Case measures 2.53"W x 3.34"D x 0.94"H (64.3 x 84.8 x 23.8 mm)
* Accepts optional 4-20 mA inputs
* Accepts optional potentiometer for offsetting a zero input
For additional information view the DM-3100N datasheet here.
~ USA: Expedited Parcel (6-12 business days) - $8.95
~ Canada: Regular Parcel (4-8 business days) - $7.95
~ International: *Small Packet Ground (3-6 weeks) or *Small Packet Air (6-10 business days) - $12.95 and $19.95 respectively
CONTACT: If you have any questions please do not hesitate to send a message. Efforts are made to respond promptly.
