Nsk u. high speed air milling spindle HTS1501S-hsk E25

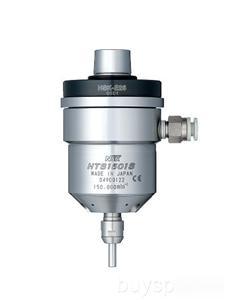

Nsk U. High Speed Air Milling Spindle HTS1501S-HSK E25
ULTRA-HIGH SPEED AIR TURBINE MILLING SPINDLE HTS1501S-HSK E25
Dramatically shorten mold cavity machining time.
HSK E25 taper shanks make this spindle very easy to attach to small machining centers. Very High speed milling is possible.
HTS1501S-HSK E25 Air Turbine Milling Spindle
Collet 4.0 mm (CHA-4.0) Collet Nut (CHN-A)
Wrench (8 x 5), (9 x 11) : 1 pc. each Filter Joint (FJ-01) Hose (K-247) : 6 mm x 13 ftx
Speed 150,000 min-1(rpm) (71PSI) Weight 26.81 oz.
Air type Side Air Supply Type
Shank Straight BT30 / 40 / 50, HSK E25 / 32 / 40 / 50 / A63 / F63
Standard Size Collet (CHA-4.0) 4.0 mm
High Speed 150,000 min-1(rpm)
Suitable cutting tool diameter ; Less than R0.5 mm Ball End Mill
Negligible spindle expansion
Air Turbine mechanism has extremely low heat generation. Only a minimal warm up time is required ex.1-2 min. Up to cutting tool R x 0.1 mm depth of cut is possible.
Very High Feed Rates are possible
Highly stable milling conditions are possible even with very small diameter cutting tools.
Usable max. cutting tool diameter : Ball End Mill R0.5 mm, Square End Mill 1 mm
Spindle Accuracy is within 1 m
Dramatically shorten mold cavity machining time
HTS Series Milling Capacity Reference
Milling : Straight Milling / Work : NAK80 / Motor Speed : 150,000 min-1(rpm)
Caution) 1. Ball End Mill Type with ultra hard coating. Cutting tool capabilities vary depending on the tools being used.
2. Milling capacity may change depending on the tools being used, the material being cut and other application variables.
