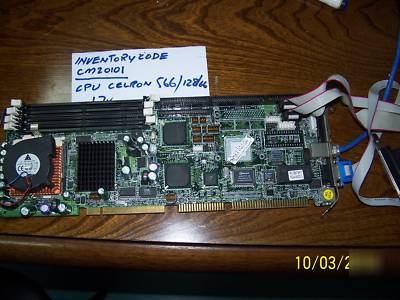

PEAK632A / vl rev. b industrial sbc embedded card pc
Celeron 566Mhz / 128 / 66 1.7v CPU installed
SBC Full-size Intel 440BX Socket 370 Celeron/Pentium III AIO CPU Card
Intel Celeron/Pentium III CPU with 66/100MHz FSB up to 850 MHz
1GB SDRAM (Max.) memory support, DIMM x 4
C&T 69000 AGP mode VGA controller with CRT/LCD support
Intel 82559 10/100 Base Ethernet controller
Adaptec 7890 UW/U2 SCSI controller (option)
Full size SBC with PCI/ISA Golden finger
Intel Socket 370 Celeron/Pentium III with 66/100MHz FSB
Intel Celeron/Pentium III CPU with 128/256K cache on die
Brand New Socket 370 FC-PGA CPU running at 66/100MHz FSB up to 850MHz
Support streaming SIMD instruction
Support SDRAM up to 1GB (Max.)
ECC support (single bit error correction/Multiple bit errors reporting)
Advanced Power Management support
Advanced configuration & Power Interface support
C&T 69000 AGP mode VGA controller
Maximum Res. Color & Refresh Rate
16bits (High color)
24bits (True color)
Driver support: Windows 95/98, Windows NT4.0
15 pin CRT connector x1, 50 pin LCD panel connector x 1
Intel 82559 Single Ethernet controller
10 Base T/100 Base TX support, full duplex
Complied with PCI V2.1, IEEE802.3, IEEE 802.3U
Backward compatible with former 82558 Ethernet controller base net modules
Diver support: DOS/Windows, Windows 95/98, Windows NT4.0, NetWare, SCO Open Server 5.0
Adaptec AIC 7890 RISC SCSI controller
Brand New Ultra 2 SCSI support
80MB/s (Max.) transfer rate, up to 12 meter cable
Backward compatible with Ultra Wide SCSI, SCSI II, etc.
Driver support: Windows 95/98, Windows NT4.0, SCO Open Server 5.0
Winbond W83977 Super I/O on board
SIO x 2, with 2 x 16C550 UARTs, 9 pin D-type x 1, 10 pin HEADER x 1, optional RS422/485 x 1
PIO x 1, Bi-directional, EPP/ECP support, 26 pin x 1
Floppy Disk controller: 5.25 360K/1.2MB, 3.5 720K/1.2MB/1.44MB/2.88MB support, 34 pin connector x 1
On chip enhanced IDE x 2, PIO up to mode 4, DMA master up to mode 2, Ultra DMA/33 support, 40 pin x 2, total 4 E.IDE Devices support
On chip keyboard, mouse controller, PS/2 Keyboar/ Mouse, 5 pin header x 1, 6 pin mini DIN x 2, (for Peak632V/Peak632): PS/2 Keyboard, 6 pin mini DIN x 1, share with PS/2 mouse by Y cable (for Peak632A/Peak632VL)
On board USB port x 2 (6 pin header x 1)
On board 2 pin header for reset SW, 4 pin for speaker, 5 pin for keylock
On board 3 pin header for +5VSTBY, GND, Power ON#
On board reserved CAN Bus connector
High precision real time clock/calendar with battery back up
On Board Solid State Disk Socket
On board reserved socket for DOC of M-systems G2MB~144MB, etc
Winbond W83782D system monitor controller
Six voltage (For +3.3V, +5V, +12V, -12V, Vtt and Vcore )
Drivers support: Windows 95/98, Windows NT4.0
Maximize ISA signals to support ISA cards up to 20
1,2,4 K64 seconds time-out intervals
Operating temperatures: 0 C to 60 C
Storage temperatures: -20 C to 80 C
Relative humidity: 10% to 90% (Non-condensing)
