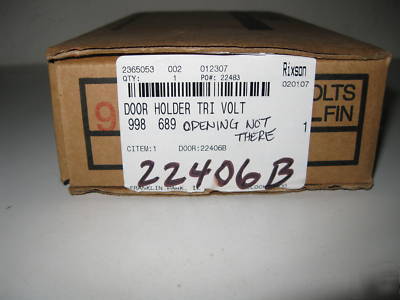

Rixson model 998 magnetic door holder
Rixson Model 998 (FM998)Wall Mounted Electromagnetic Door Holder in Sprayed Aluminum ApplicationWall MountConcealed WiringTri-Voltage Finish689, Sprayed AluminumFor other finishes, call for availability FeaturesThe Firemark series of electromagnets is designed to specifically to hold fire and smoke barrier doors open until released by a remote smoke detector or other switching device. The complete assembly consists of an armature contact plate with adjustable pivot mounting for installation on the door and a heavy-duty electromagnet mounted on the wall or floor behind the door.
* Mounting requirements: 2" x 4" x 1-3/4" outlet box
* Wall must be properly reinforced and outlet box adequately fastened
* 120 VAC, 60Hz., .020 amp
* 24 VAC/DC, 60Hz., .020 amp
* 250VAC, 50/60Hz., .009 amp
