The gator stimulus transmitter berkeley varitronics

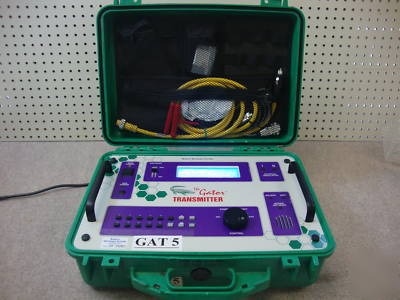

Gator Class A Stimulus Transmitter
PDFDownload Gator manual in the Technical Support section
PDFDownload Gator CE Compliance Report
PDFDownload Gator FCC Compliance Report

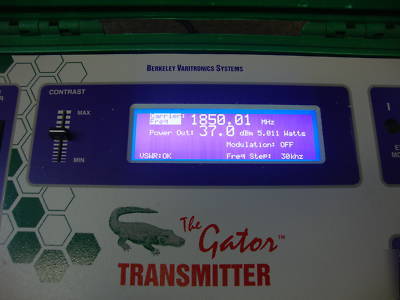

240 X 64 pixel graphic supertwist LCD (VF backlit)
Stability less than 1.5 PPM for first year, + for 1 PPM for aging
Continuous adjustable power output + 1.0 dB over > 32 dB range (below 1 GHz)
Continuously adjustable via rotary knob or direct keypad entry in 1 dBm increments over > 20 dB on models above 1 GHz
> 55 dBc (decibels below carrier level)
110-240 VAC 50-60 Hz, auto-switching, UL and CSA approved
10 and 20 watt models may also be powered from +12VDC
Via serial RS-232, internal modem or DTMF through telco
Forward and reverse power monitored via internal power meters. Output is regulated to < +1.0 dB of setting at up to a 6:1 VSWR
20 watts into 50 ohms (GSM cellular model)
+ 0.1 dB steps over 20 dB range to full output
Internal forward and reverse power meters with built-in circulator
Infinite VSWR (shuts off at > 6:1 SWR)and temperature protected
+ 50/200 kHz steps via keypad or rotary control
+ 2.0 PPM from 0 deg to 50 deg C
Three ways, modem, DTMF or RS-232-C via rear panel
Graphic 240 x 64 EL backlighted
110, 220 VAC, 50-60 Hz or 23-27 VDC at 6 Amps
effective rate 271 kbps (per GSM specs)
Unmodulated CW signal. Note, GSM data modulation cannot be turned on from the main Gator screen.
Transmitter will modulate with user-supplied and filtered I and Q data from an external source. This is via BNC connectors located on the top panel of the Gator.
Gator outputs GSM modulation with internally-generated and random PN (pseudo-random) data.
GSM modulation with user-downloadable BCCH (base station control channel) stored data, downloaded by the user with PC loader software. This is via the RS-232C jack in rear. User must supply the base station data to be output, gator will repeat this transmission indefinitely.
