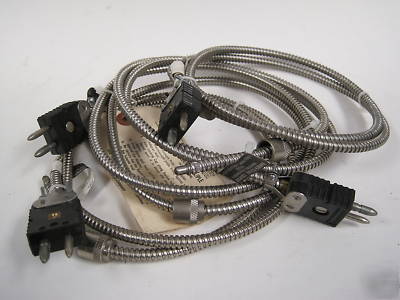

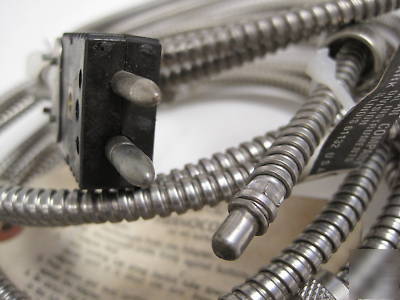

Barber colman 36" j type immersion thermocouples lot
Item Title: Varidepth Adjustable Depth Immersion Thermocouple in Armor Clad Flexible Tube Lot
Model Number: PO11-33300-036-6-00
The Varidepth thermocouple adjusts to many depths eliminating the need to stock a variety of fixed immersion sensors. Compression of the flexible tube provides locking force that keeps the probe tip tight against the well bottom. Type J thermocouples have silver soldered tipped probes for faster response.
* Locking Cap Adjusts Easily to Any Position On Flexible Tube
* Compressed Tube Holds Probe Tip Firmly Against Well Bottom
* Thermocouple at Tip of Probe for Maximum Heat Transfer
* Type J Withstands up to 750 F Over Probe and Tube
P - Base Model: Plastics Industry
01 - Thermocouple Type: J - 20 gauge solid, -210 C - 1200 C
1 - Number of Elements - Single Element
33 - Junction Style, Lead Protection: Closed End, Ground, Flexible Tube
3 - Cold End Termination: Solid Pin Quick Disconnect Plugs
Product Link: http:// /sensors/plastic.tc/v-tc-ar.pdf
