Electronic edge finder - z height setter - cnc - mill


PRECISION ELECTRONIC POSITION MEASURING SYSTEM

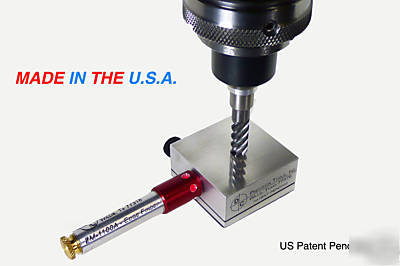

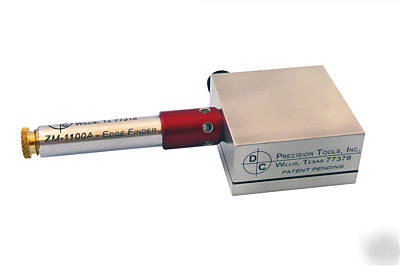

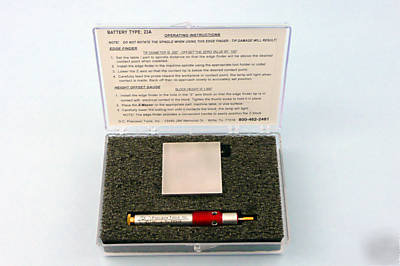

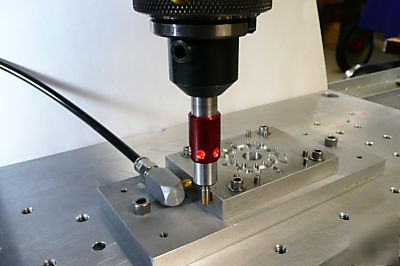

The Z-Master system simplifies setting precise X Y Z positions on both CNC and manual Milling Machines. It is also excellent for measuring tool offset values on both manual and automatic machines. You are purchasing a combination edge finder and "Z" setter package. The edge finder plugs into the "Z" block functioning as the visual sensor and electronics package. It also provides a convenient positioning handle for safely adjusting the block location under the cutting tool.

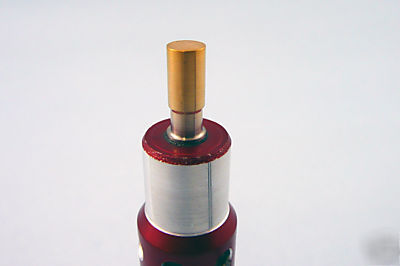

* 24K gold plated probe contact tip ensures better than .0002 repeatability
* 12v operating voltage for optimized sensitivity on oily surfaces
* 300mw super bright led with 6 highly visible light ports
* The top and bottom "Z" block surfaces are hand lapped
* Quickly measure and set Z axis tool offsets
* Accurately set precise XYZ positions
* A full 1 year replace/repair warranty is included
* 12V battery included - type 23A
ORDER METRIC BY PURCHASING THIS INCH UNIT

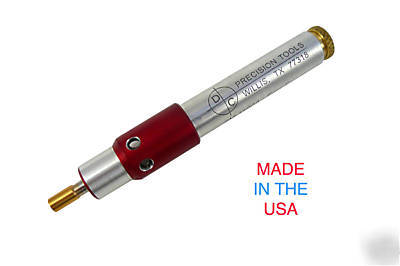

EDGE FINDER SHANK OD = 1/2" (.4995) or 12mm Metric
EDGE FINDER TIP OD = .200" or 6mm Metric
BATTERY LIFE = 30 HOURS IN ENERGIZED STATE (LED ON)
Z BLOCK DIMENSIONS = 2 x 2" Nom. X 1.0000 HIGH - or 50.5 x 50.5 mm Nom. x 25mm Metric
