Lathe tooling - hardinge straight & taper turning slide
LATHE TOOLING - HARDINGE STRAIGHT & TAPER TURNING SLIDE

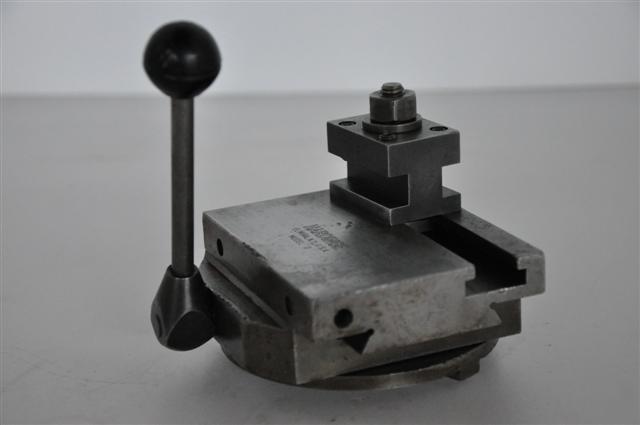

USED HARDINGE STRAIGHT & TAPER TURNING SLIDE
THE STRAIGHT AND TAPER TURNING SLIDE IS USED TO MACHINE STRAIGHT OR TAPERED TURNS AND STRAIGHT OR TAPERED BORES.
THE SLIDE MOUNTS DIRECTLY TO THE L4 BASE, WHICH IS POSITIONED ON THE REAR CROSS SLIDE SECTION OF AN HLV* OR TFB* MACHINE. THE SWIVEL BASE IS GRADUATED IN DEGREES AND CAN BE SWIVELED AND LOCKED TO ANY ANGLE IN 360 . THE LEVER-OPERATED SLIDE CAN TRAVEL UP TO 1-3/4' (44.45 MM), AND LENGTH IS CONTROLLED IN EITHER DIRECTION BY ADJUSTABLE STOP SCREWS.
THE STANDARD ROCKER-TYPE TOOL HOLDER TAKES 5/16" SQUARE SHANK TOOL BITS. THE TOOL CAN BE ADJUSTED TO THE HEIGHT OF THE SPINDLE CENTERLINE BY USING THE ROCKER ASSEMBLY.
