V-block offset style vintage moore machinist toolmaker

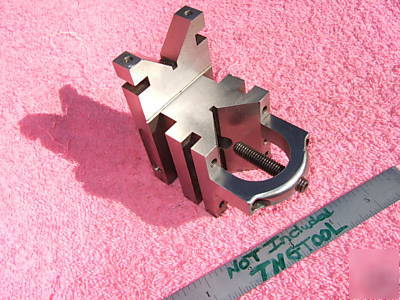

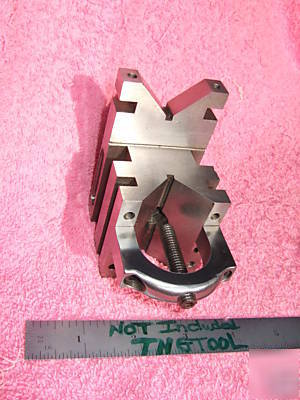

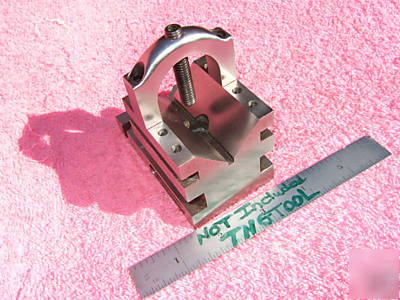

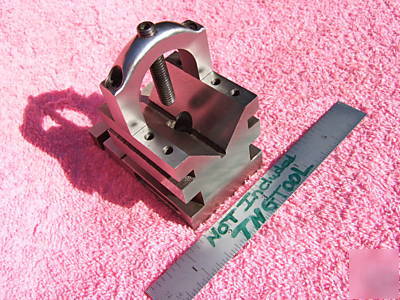

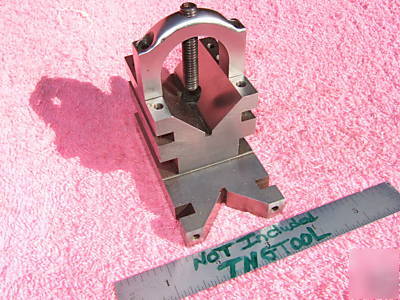

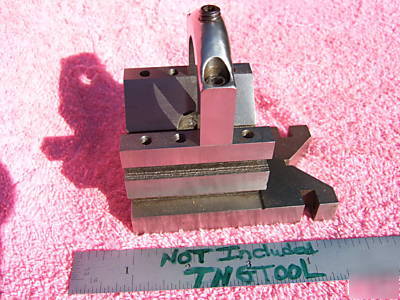

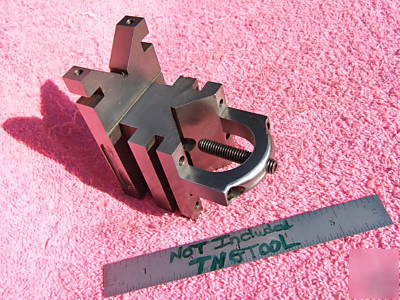

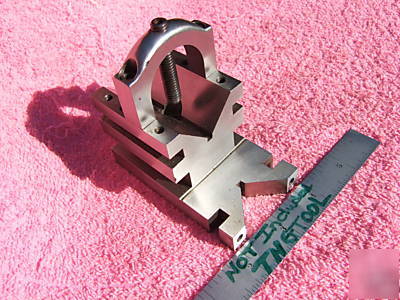

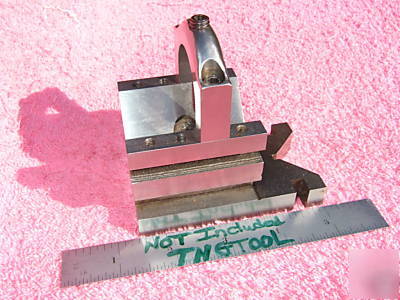

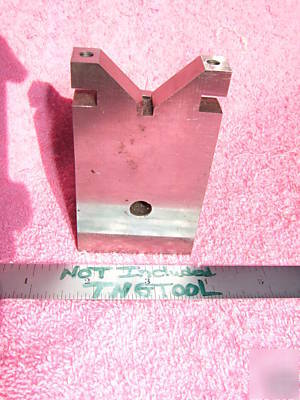

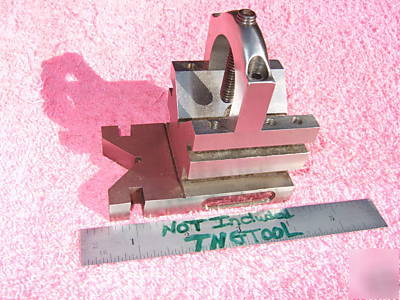

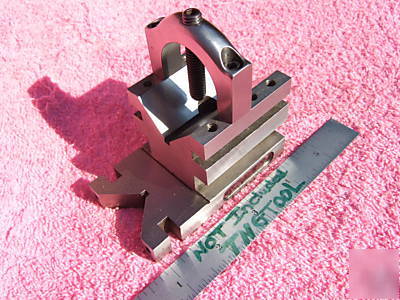

V BLOCK OFFSET OR FISHTAIL STYLE (1) MADE FROM AIR-HARDENED A-2 WITH (1) CLAMPS AND (2) VEES MADE OF HARDENED AND PRECISION GROUND TOOL STEEL USED BY MACHINIST AND TOOLMAKERS ALIKE. MADE BY 30 YEAR TOOLMAKER NONE BETTER AND IN EXCELLENT USED CONDITION!!!!! V BLOCK IS IN EXCELLENT CONDITION HAVING BEEN ORIGINALLY GROUND USING A HERMANN SCHMIDT SQUARING BLOCK AND MAGNA-SINE ON A BALLWAY SURFACE GRINDER. V BLOCK MEASURES 3.624" LONG x 2.07" WIDE AND IS 2.062" TALL. THE VEE WIDTHS ARE APPX 1.37" OR 1-3/8". V-BLOCK BODY TOP IS DRILLED AND TAPPED #10x 32 (8) TIMES FOR CLAMP PROVIDED AND TO ATTACH AS NEEDED TO ANGLE PLATES, SINE PLATES AND HARIG FIXTURES . CLAMP CAN ALSO BE BOLTED ON THE OFFSET VEE DUE TO (2) TAPPED #10 X 32 HOLES AS SHOWN. A DRILLED 11/32" AND COUNTER-BORED HOLE FOR 5/16" SOCKET HEAD CAPSCREWS IS PROVIDED IN THE CENTER OF LONGER VEE!!! VERY HANDY FOR GRINDING EJECTOR PINS AND OTHER LONG ITEMS. EXCELLENT USEFULL BLOCK FOR SURFACE GRINDER OR BRIDGEPORT LIGHT MILLING WORK. WE HAVE USED ONE JUST LIKE IT ON A JIG-GRINDER AND EDM, THEY WORK VERY WELL. SEE PICS.
* The block has (10 TOTAL) #10 X 32 tapped holes,
