1/2"x 15 feet heat shrink tube tubing yellow polyolefin
POLYOLEFIN HEAT SHRINKABLE TUBING
This listing is for one (1) roll of 1/2" x 15 feet of YELLOW Heat Shrink Tubing manufactured by INSUL TAB, Woburn, MA. USA. Shink Lot#3153134 Part # INSULGRIP HS-101-1 POLYO , Recover ID .250 CSA/OFT 600VOLTS 125DEG.C VW-1, Recomenneded Shrink Temperature - 5 Min @ 150 C. MADE IN USA
Data Per Insultab "HS-101 2:1 shrink ratio All purpose insulation with excellent chemical, physical and electrical properties, shrinks at a low temperature and is easily marked. HS-101 colors are highly flame retardant meeting UL Subject 224 VW-1.
* Excellent all purpose, highly flexible insulation
* Excellent chemical, physical and electrical properties
* Superior resistance to abrasion
* Free of polybrominated biphenyls and polybrominated biphenyl oxides and ethers, which are classified as environmentally hazardous substances.
* Meets UL, CSA and Military specifications
* Insulation and strain relief of wire splices, terminals and wire connections
* Electrical insulation and protection of in-line components
* Bundling wires for flexible, light-duty harnesses
* Color coding or identifying wire, cables, terminals and components
* Commercial and military applications
* SAE-AMS-DTL-23053/5 Classes 1 & 3 (Colors)
* SAE-AMS-DTL-23053/5 Class 2 (Clear)
* Minimum Recommended Shrink Temperature: 90 C (194 F)
* Operating Temperature Range: -55 C to 135 C
* Longitudinal Shrinkage: +1 / -5%
* Physical / Electrical / Chemical Properties:
* Specific Gravity: 1.35 max. Colors only
* Tensile Strength: 1500 psi min.
* Ultimate Elongation: 200% min.
* Secant Modulus: 2.5 X 104 psi max
* Heat Aging: 7 days @ 158 C Elongation 100%
* Heat Shock: 4 hrs. @ 250 C
* Low Temperature Flexibility: 4 hrs. @ -55 C No cracking
* Flammability: UL Subject 224 VW-1
* Volume Resistivity: 1014 ohm-cm min.
* Dielectric Strength: 500 vpm
* Corrosion Resistance: Non-corrosive
* Water Absorption (Recovered): 24 hrs. @ 23 C 0.5% max.
* Product may include identical HS-101-I and HS-101-R designations "

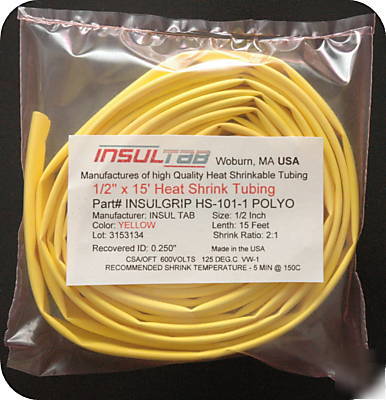

Picture may not be actual BAG mailed, all 1/2" x 15' Yellow in this listing will be mailed in a BAG and labeled as seen in picture.
