ARM7 analog device ADUC7024 module basic stamp board
ARM ADuC7024 BASIC STAMP BOARD

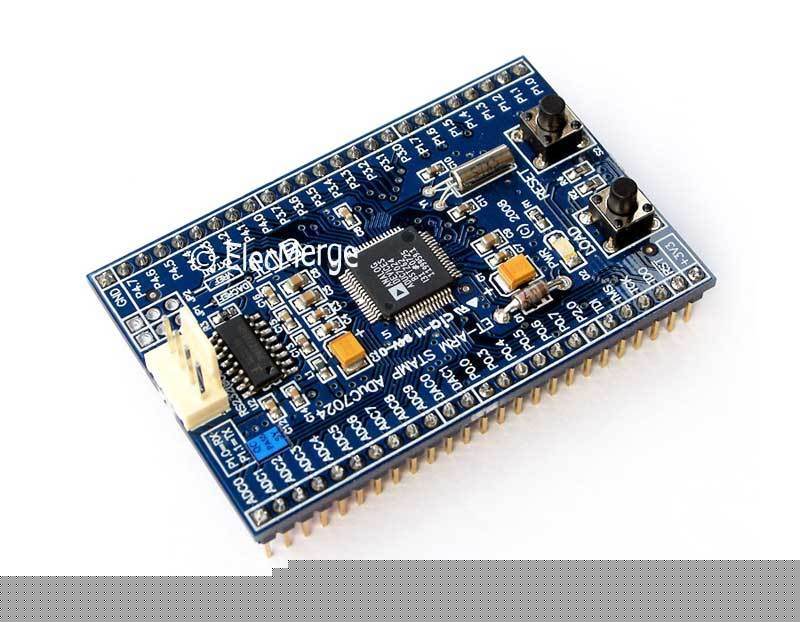

ARM ADuC7024 BASIC STAMP Module
The ADuC7024 Stamp Module use Microcontroller ARM7 64PIN family Microcontroller No.ADuC7024 from Analog Device to be permanent MCU on Board. The MCU is contained in DIP 64 PIN LQFP. It can connect with signal Analog both ADC 12Bit 10 Channel and DAC 12Bit 2 Channel. Moreover, it can collect data maximum 41.78 MHz by using XTAL 32.768 KHz and circuit Phase Lock Loop internal MCU. Additionally, there are fully components such as Flash Memory 32 Kbyte and RAM 8 Kbyte, SPI, UART, Watchdog Timer, Timer/Counter, and PWM. Board is designed to be a small size, so we can apply board and develop program for various project works easily.
MCU 16/32 Bit RISC ARM7TDMI Core Analog Device ADuC7024
* Flash Memory 32 KByte and RAM 8 KByte
* 5 Port I/O; P0(6Bit), P1(8Bit), P2(1Bit), P3(8Bit) and P4(8Bit)
* 1 UART Port Communication, 1 SPI Port Communication
* Circuit ADC 12Bit 10 Channel and Circuit DAC 12BIT 2 Channel
* Circuit Watchdog, Power-ON Reset, PWM
* Connector Rs232 for usage and download through RS232
1 x ARM ADuc7024 Basic Stamp Module (include RS-232 Serial Cable & CD Document)
* ARM ADuC7024 BASIC STAMP Board.
* Keil ARM Evaluation tools.
