Industrial timer co dual trol 5 min 115V self reseting
Industrial Timer CO Dual Trol 5 Min 115V Self Reseting

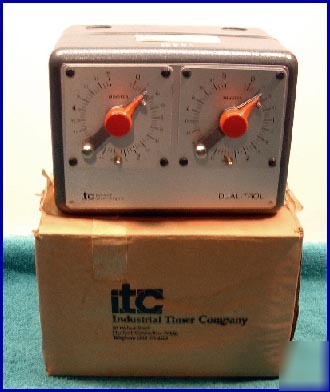

Offered for sale is a Industrial Timer CO Dual Trol 5 Min 115V Self Reseting. This dual 5 minute timer is NEW OLD STOCK in its original box with no papers. The model number is 632700-001 There are six terminal marked L1, L2, Res, C, NO, and NC Both timers are 5 minute full scale with 5 second increments on their dials.
I connected 115V to terminals L1 L2 and set both timers, the timer on the left counts down to zero and resets to the set time then the right timer starts counting down to zero and resets to the set time and the timer on the left starts the cycle over. The terminals marked C and NO show continuity while the left timer is running. The terminals marked C and NC show continuity while right timer is running.
